CAT6A S/FTP PUR Rugged Ethernet Cable Reel — REAN etherCON, Male to Male

CAT6A S/FTP rugged Ethernet cable reel engineered for demanding professional AV, live event, broadcast, and touring applications. This cable reel is designed to simplify routing in complex environments such as music festivals, award shows, and large-scale productions where fast deployment and reliable data transmission are critical.

The cable is constructed with four pairs of solid 23 AWG bare copper conductors and features S/FTP double shielding, providing excellent protection against external noise and interference. A UL-listed PUR outer jacket delivers superior resistance to mechanical wear, bending, pulling, cracking, and UV exposure, making it suitable for repeated deployment in indoor and outdoor environments.

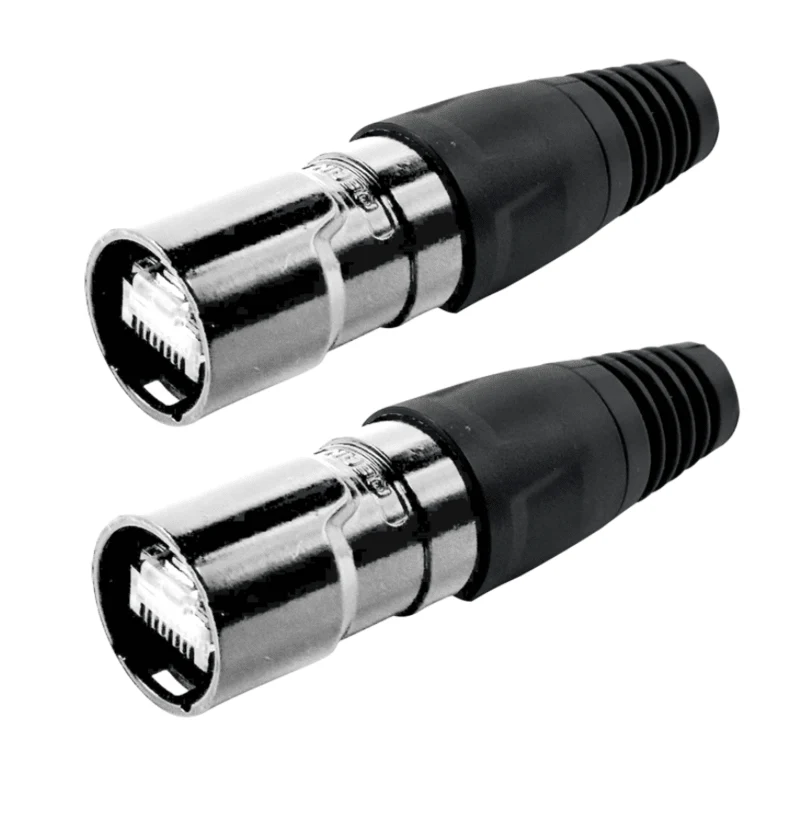

The reel is fitted with a male REAN etherCON connector on the cable end and a matching female REAN etherCON chassis connector on the reel, ensuring secure, lockable Ethernet connections. This assembly supports 100Base-TX, 1000Base-T, and 10GBase-T transmission, making it suitable for data, lighting control, digital audio, and HD video transport.

Key features

• CAT6A S/FTP rugged Ethernet cable reel for professional AV use

• Male REAN etherCON connector to female REAN etherCON chassis interface

• 4-pair solid 23 AWG bare copper conductors

• S/FTP double shielding for high EMI/RFI immunity

• UL-listed PUR jacket resistant to abrasion, bending, and UV exposure

• Supports 100Base-TX, 1000Base-T, and 10GBase-T

• Lightweight yet rugged PE + PC reel construction

• Integrated shrink sleeves for custom labelling

• Available configurations: etherCON or REAN, male-to-male or male-to-female

• Available lengths: 50 m / 90 m

• Part number: 301024



Applications

• Live events and touring productions

• Professional AV and broadcast systems

• Lighting control and digital audio networks

• Temporary data networks at festivals and venues

• HD video and signal distribution



What’s included

One CAT6A S/FTP PUR rugged Ethernet cable reel with REAN etherCON connectors (P/N 301024).

Minimum order quantities apply. Please contact us with your required cable length and quantities, and we will provide our best wholesale pricing.
