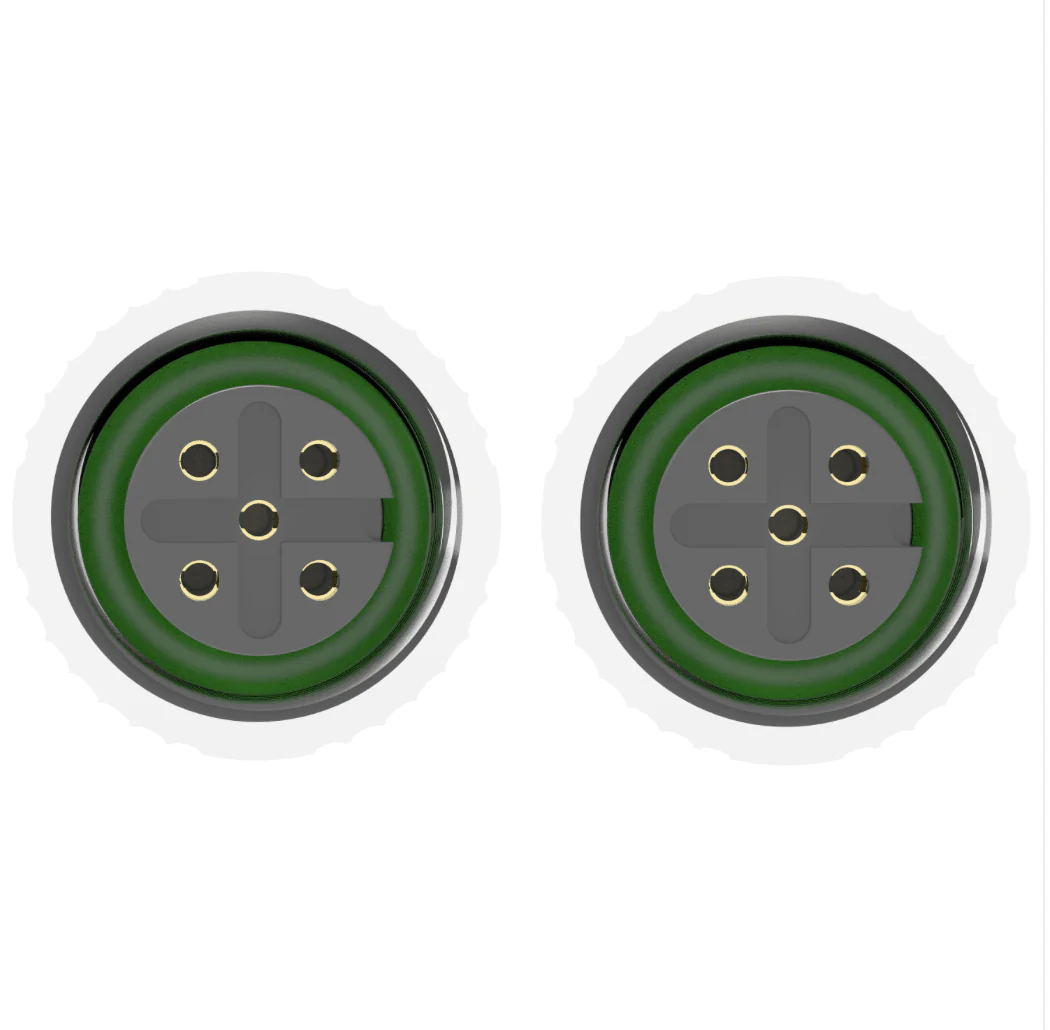

M12 A-Coded 5-Pin Female to Female Sensor Cable PUR IP67 Drag Chain Rated

This M12 A-coded 5-pin female to female sensor cable is engineered for reliable signal and power transmission in industrial automation, control, and machine-building applications. Featuring straight M12 connectors on both ends and an overmoulded PUR jacket, the cable is designed to withstand demanding mechanical conditions, including continuous movement in drag chain systems.

The cable assembly is unshielded and constructed with AWG22 conductors, making it suitable for standard sensor, actuator, and control signal applications. With an IP67 ingress protection rating, it provides effective resistance against dust and water, ensuring dependable operation in harsh industrial environments.

Approved to UL AWM 20549 and manufactured using halogen-free, flame-resistant materials, this cable is suitable for OEM production, system integration, and repeat-build machinery. It is available in multiple standard lengths from 0.3 m to 20 m, offering a flexible and plug-and-play solution for industrial installations requiring durability, consistency, and long service life.

This product is supplied for bulk and project-based orders and is intended for professional and industrial use.



Specifications

Connector type: M12 A-coded

Gender: Female to female

Number of pins: 5

Connector orientation: Straight

Cable jacket material: PUR (polyurethane)

Conductor size: AWG22

Shielding: Unshielded

Ingress protection: IP67

Operating voltage: Max 60 V DC

Nominal voltage: 300 V

Current rating: Max 4 A per contact

Temperature range (moving): −30 °C to +70 °C

Temperature range (fixed): −40 °C to +80 °C

Drag chain capable: Yes

UL approval: UL AWM 20549

This industrial grade product is supplied subject to minimum order quantities (MOQ). For wholesale pricing, volume discounts and lead times, please contact us with required lengths, colours and quantities, we will issue a formal quotation with our best available pricing.
