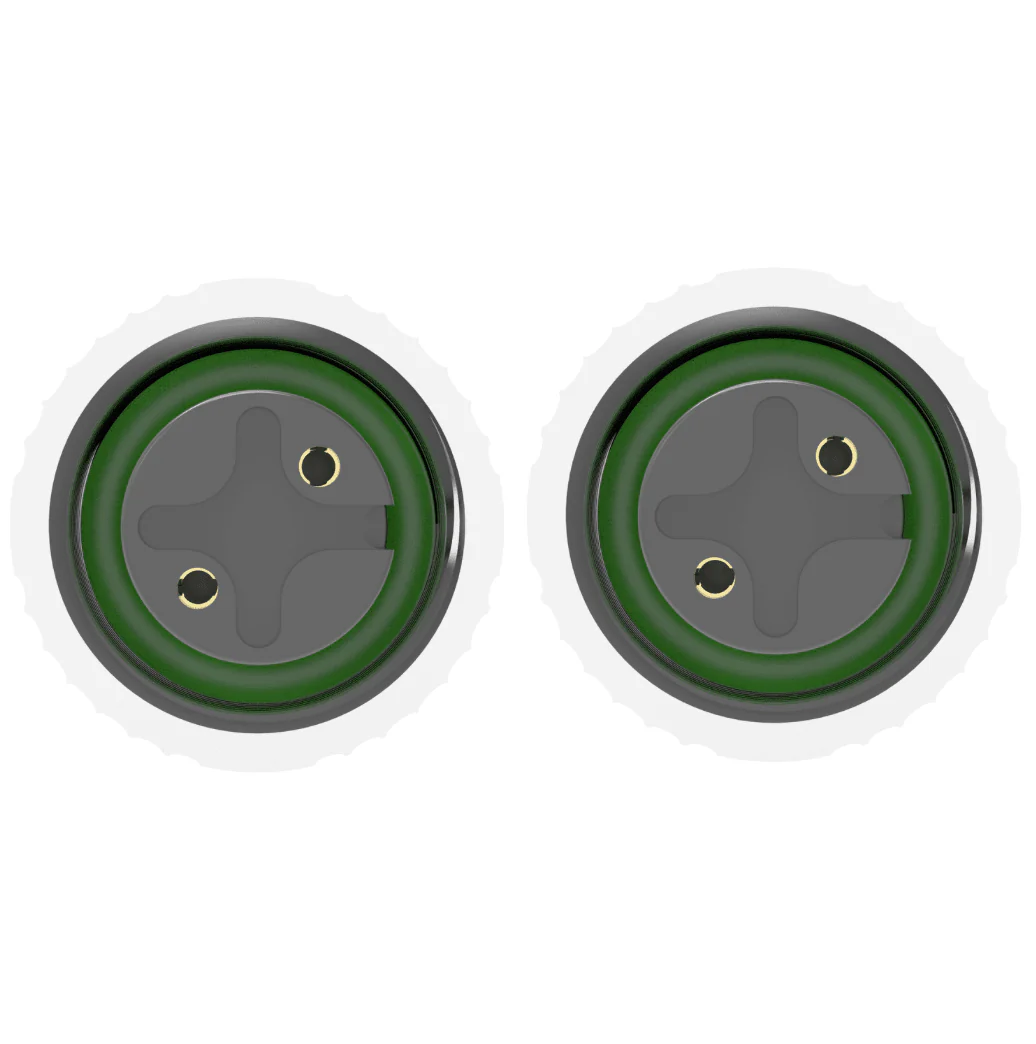

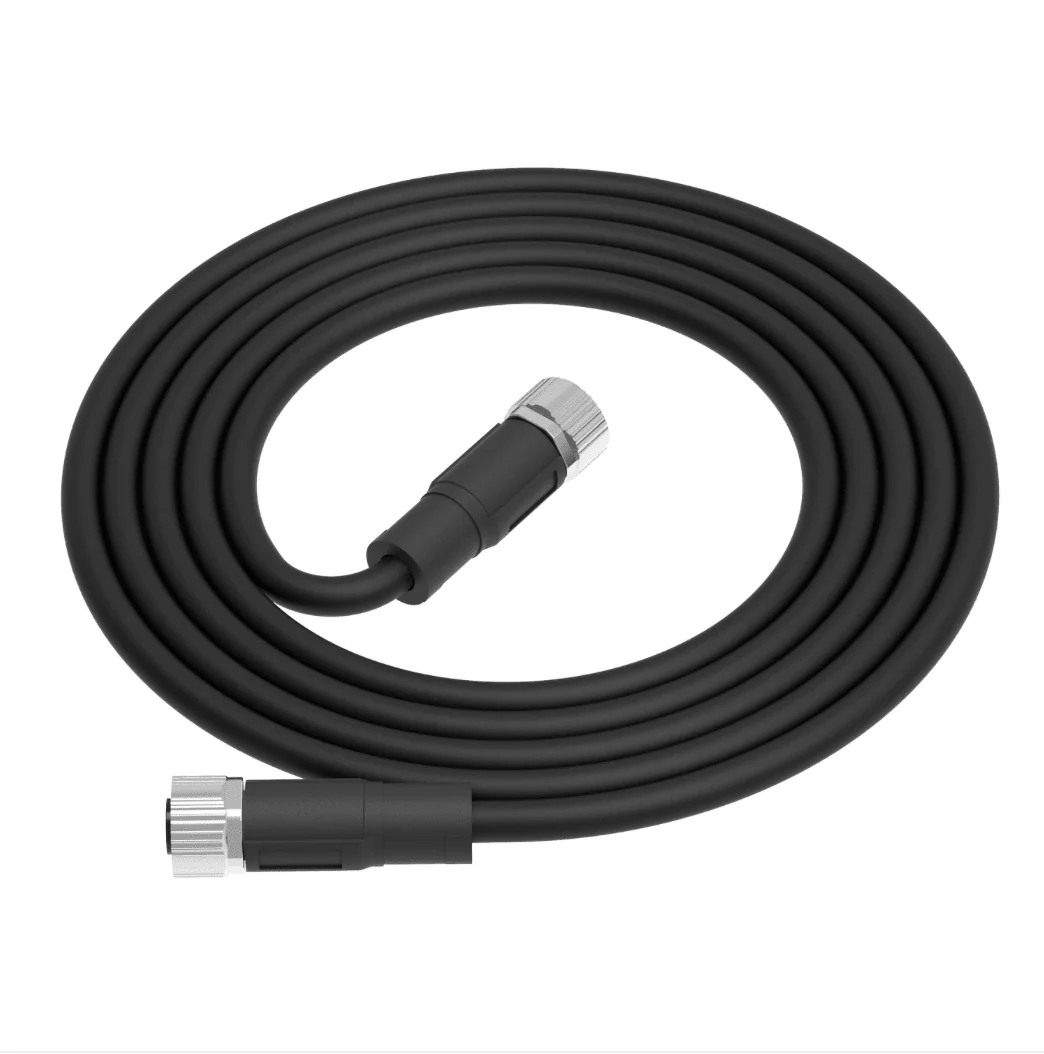

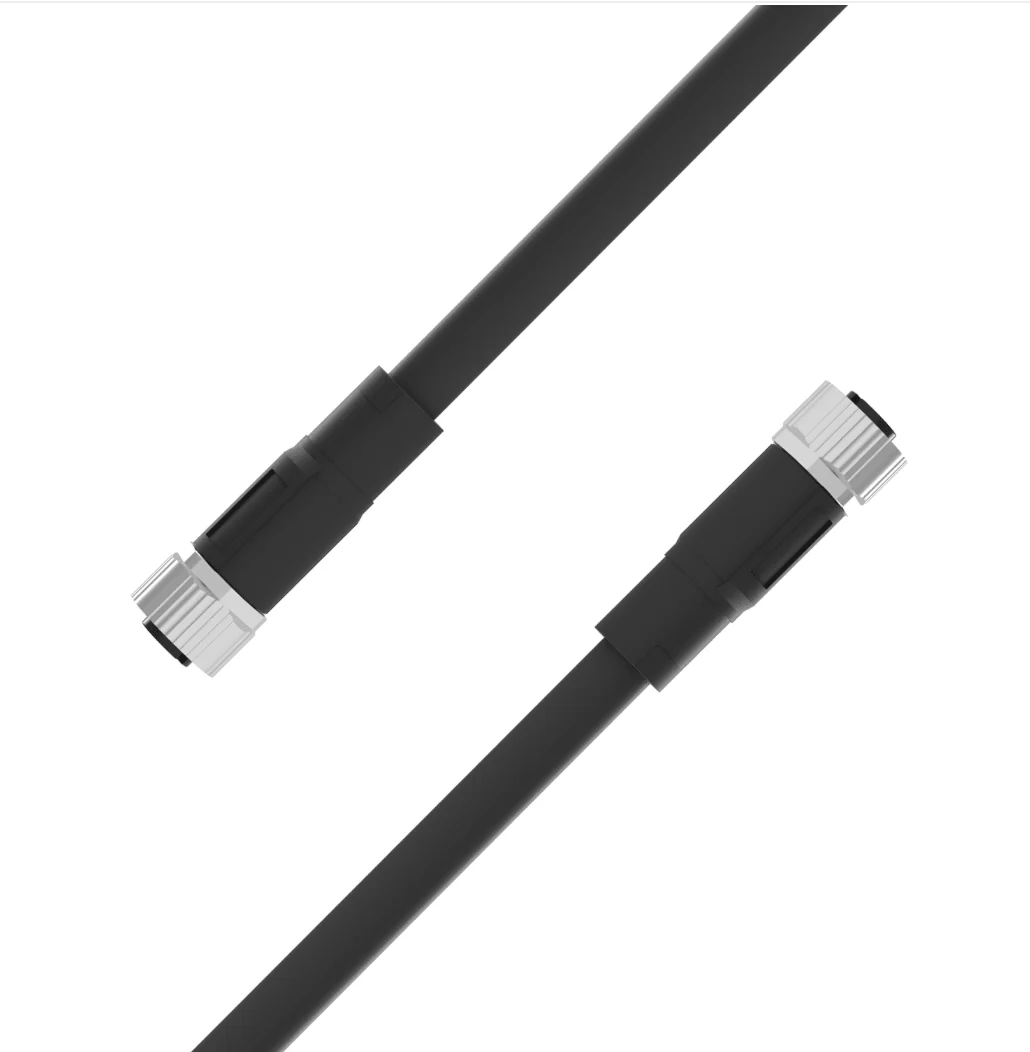

M12 A-Coded 2-Pin Female to Female Sensor Cable PUR IP67 Drag Chain Rated

This M12 A-coded 2-pin female to female sensor cable is designed for reliable signal and power transmission in industrial automation and sensor applications. Featuring straight M12 connectors on both ends and an overmoulded PUR jacket, the cable delivers excellent durability in dynamic environments, including drag chain and torsional applications.

The cable is unshielded and built with AWG22 conductors, making it suitable for low-voltage sensor and actuator connections. With an IP67 rating, it provides protection against dust and water ingress, ensuring dependable performance in harsh industrial conditions.

Rated for up to 60V DC operating voltage and 4A per contact, this M12 cable assembly complies with UL AWM 20549 and relevant IEC standards for flame resistance, oil resistance and halogen-free operation. It is ideal for use in automation systems, robotics, machine tools, material handling equipment and process control environments.

Available in multiple lengths from 0.3m to 20m, this cable offers a flexible, plug-and-play solution for industrial installations requiring robustness and long service life.



Key Specifications

Connector type: M12 A-coded

Gender: Female to female

Number of pins: 2

Connector orientation: Straight

Cable jacket: PUR (polyurethane)

Conductor size: AWG22

Shielding: Unshielded

Ingress protection: IP67

Operating voltage: Max 60V DC

Nominal voltage: 300V

Current rating: Max 4A per contact

Temperature range (moving): -30°C to +70°C

Temperature range (fixed): -40°C to +80°C

Drag chain capable: Yes

This industrial grade product is supplied subject to minimum order quantities (MOQ). For wholesale pricing, volume discounts and lead times, please contact us with required lengths, colours and quantities, we will issue a formal quotation with our best available pricing.
