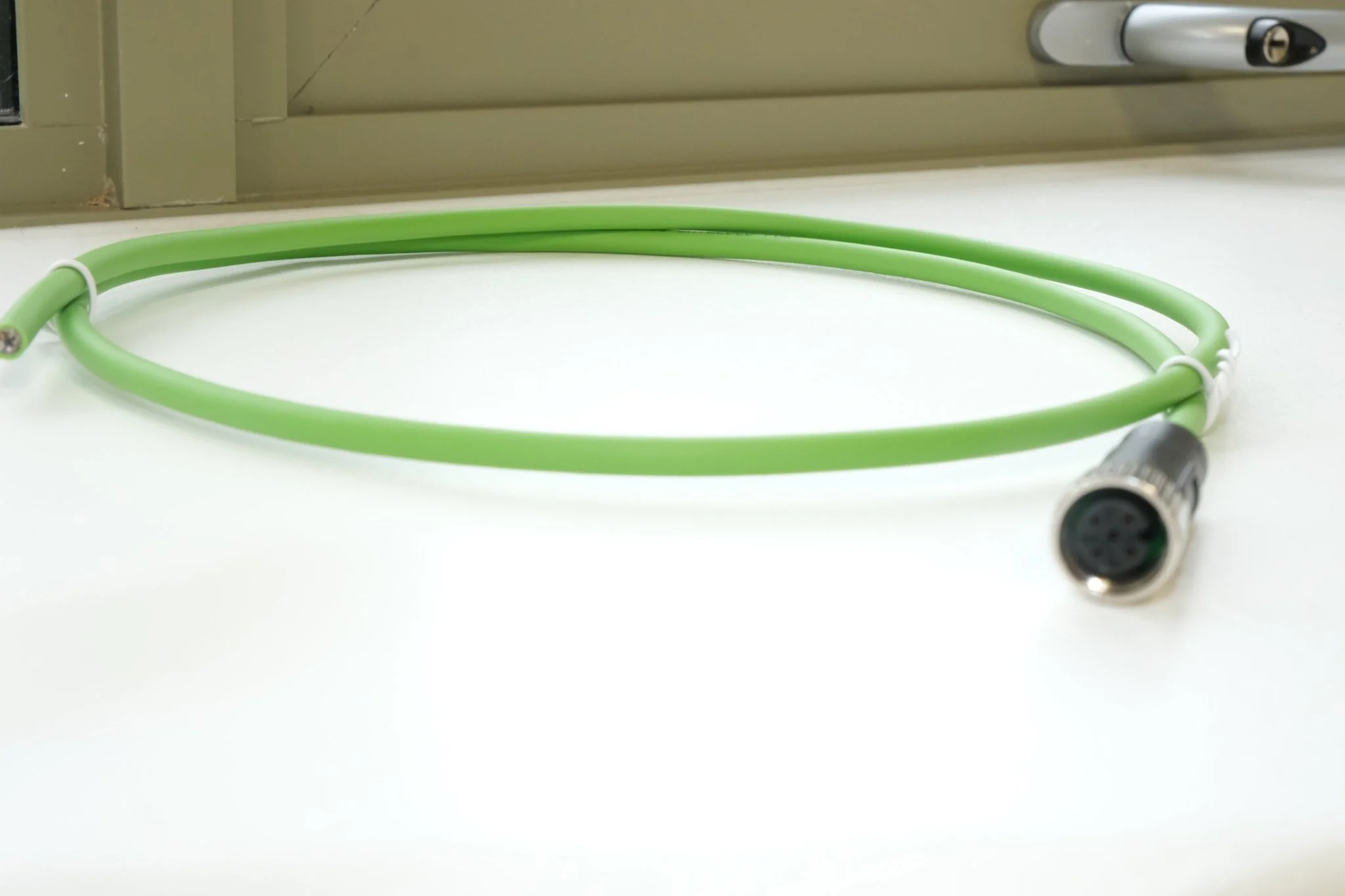

M12 A-Coded Female to Open 5-Pin Shielded Sensor Cable – PUR Drag Chain, IP67

Industrial M12 A-Coded 5-Pin Sensor Cable for Automation and Control

This M12 A-Coded female to open 5-pole cable assembly is designed for industrial sensor and actuator applications requiring reliable signal transmission in demanding environments.

Featuring a straight M12 A-coded female connector and open cable end, this assembly allows flexible field termination into PLCs, control cabinets and custom wiring systems. The 5-pin configuration supports sensor, actuator and control signals across industrial automation equipment.

Constructed with shielded AWG22 conductors and 360° EMI protection, this cable ensures stable signal performance in electrically noisy environments. The overmoulded M12 connector is IP67 rated for protection against dust and temporary water immersion.

The halogen-free PUR jacket makes this cable suitable for drag chain and torsional stress applications, offering excellent resistance to oil, abrasion and mechanical wear.

Key Features

• M12 A-Coded female straight connector

• Open cable end for flexible termination

• 5-pin sensor configuration

• Shielded cable for EMI protection

• Rated up to 300V (60V DC operating)

• Maximum 4A per contact

• IP67 rated connector

• PUR jacket for drag chain use

• Halogen-free construction

• Suitable for industrial automation and control systems

Connector Specifications

Connector A
Connection: M12 A-Coded
Gender: Female
Orientation: Straight
Poles: 5
Ingress Protection: IP67

Connector B
Connection: Open cable end
Positions: 5

Cable Specifications

Shield Type: Shielded
Conductor Structure: AWG22
Jacket Material: PUR
Cable Colour: Green
UL Type: UL AWM 20549
Length Range: 0.3m – 20m

Electrical Data

Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A
Contact Resistance: Max. 30 mΩ

Typical Applications

• Industrial sensors and actuators

• PLC input/output connections

• Robotics and automation systems

• Machine tools and production equipment

• Process control systems

• Material handling systems
