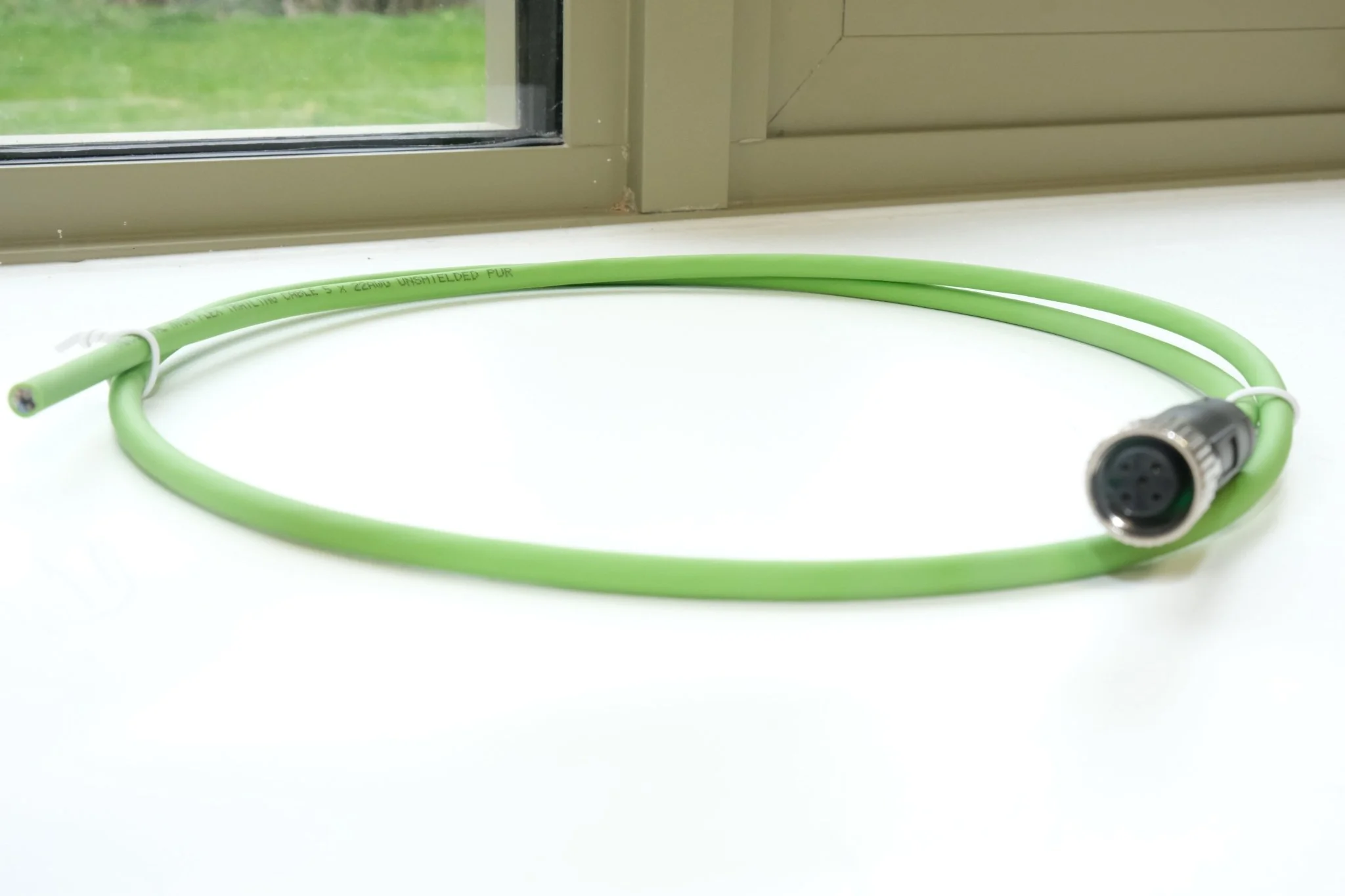

M12 A-Coded Female to Open 5-Pin Sensor Cable – Unshielded PUR Drag Chain, IP67

Industrial M12 A-Coded 5-Pin Sensor Cable for Automation and Machine Wiring

This M12 A-Coded female to open 5-pole cable assembly is designed for industrial sensor and actuator applications where reliable performance and mechanical durability are required.

Featuring a straight M12 A-coded female connector and open cable end, this assembly allows flexible termination into PLCs, control cabinets and machine wiring systems. The 5-pin configuration supports sensor, actuator and control signal applications across industrial automation environments.

The overmoulded M12 connector provides IP67 ingress protection against dust and temporary water immersion, ensuring dependable operation in harsh conditions. Manufactured with a halogen-free PUR outer jacket, this cable is suitable for drag chain and torsional stress applications, offering resistance to oil, abrasion and continuous flexing.

This unshielded version is ideal for standard sensor installations where EMI protection is not critical.

Key Features

• M12 A-Coded female straight connector

• Open cable end for field termination

• 5-pin configuration

• Unshielded cable construction

• Operating voltage up to 60V DC

• Nominal voltage 300V

• Maximum 4A per contact

• IP67 rated connector

• PUR jacket for drag chain suitability

• Designed for industrial automation and control systems

Connector Specifications

Connector A
Connection: M12 A-Coded
Gender: Female
Orientation: Straight
Poles: 5
Ingress Protection: IP67

Connector B
Connection: Open cable end
Positions: 5

Cable Specifications

Shield Type: Unshielded
Conductor Structure: AWG22 (typical for series)
Jacket Material: PUR
Cable Colour: Black
UL Type: UL AWM 20549
Length Range: 0.3m – 20m

Electrical Data

Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A

Typical Applications

• Industrial sensors and actuators

• PLC input/output wiring

• Robotics and automation systems

• Machine tools and production equipment

• Process control installations

• Material handling systems
