M12 A-Coded Male to Female 3-Pin Sensor Cable – Unshielded PUR Drag Chain, IP67

Industrial M12 A-Coded 3-Pin Sensor Extension Cable for Automation Systems

This M12 A-Coded male to female 3-pole cable assembly is designed for industrial sensor and actuator connections requiring reliable performance and mechanical durability.

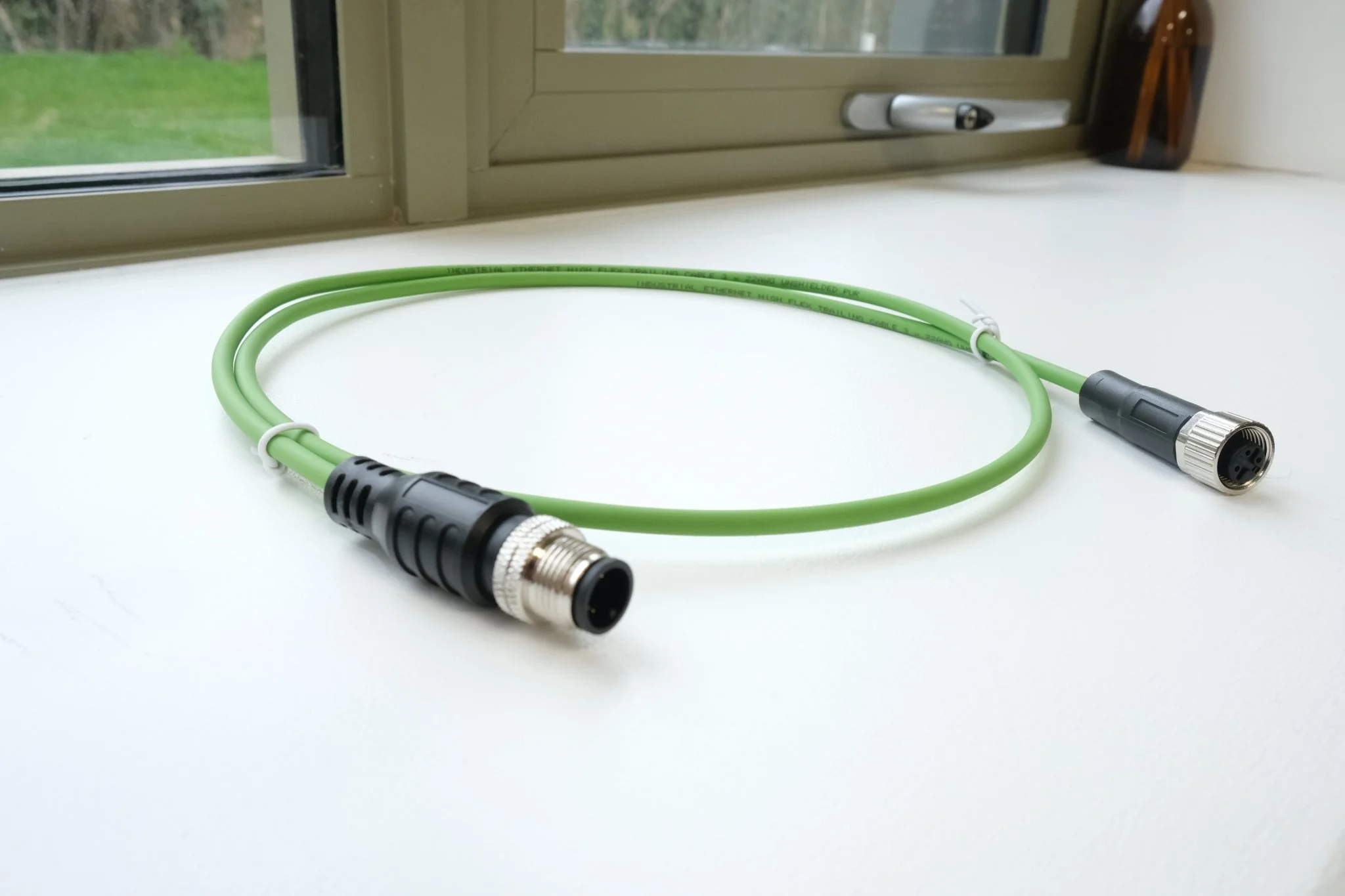

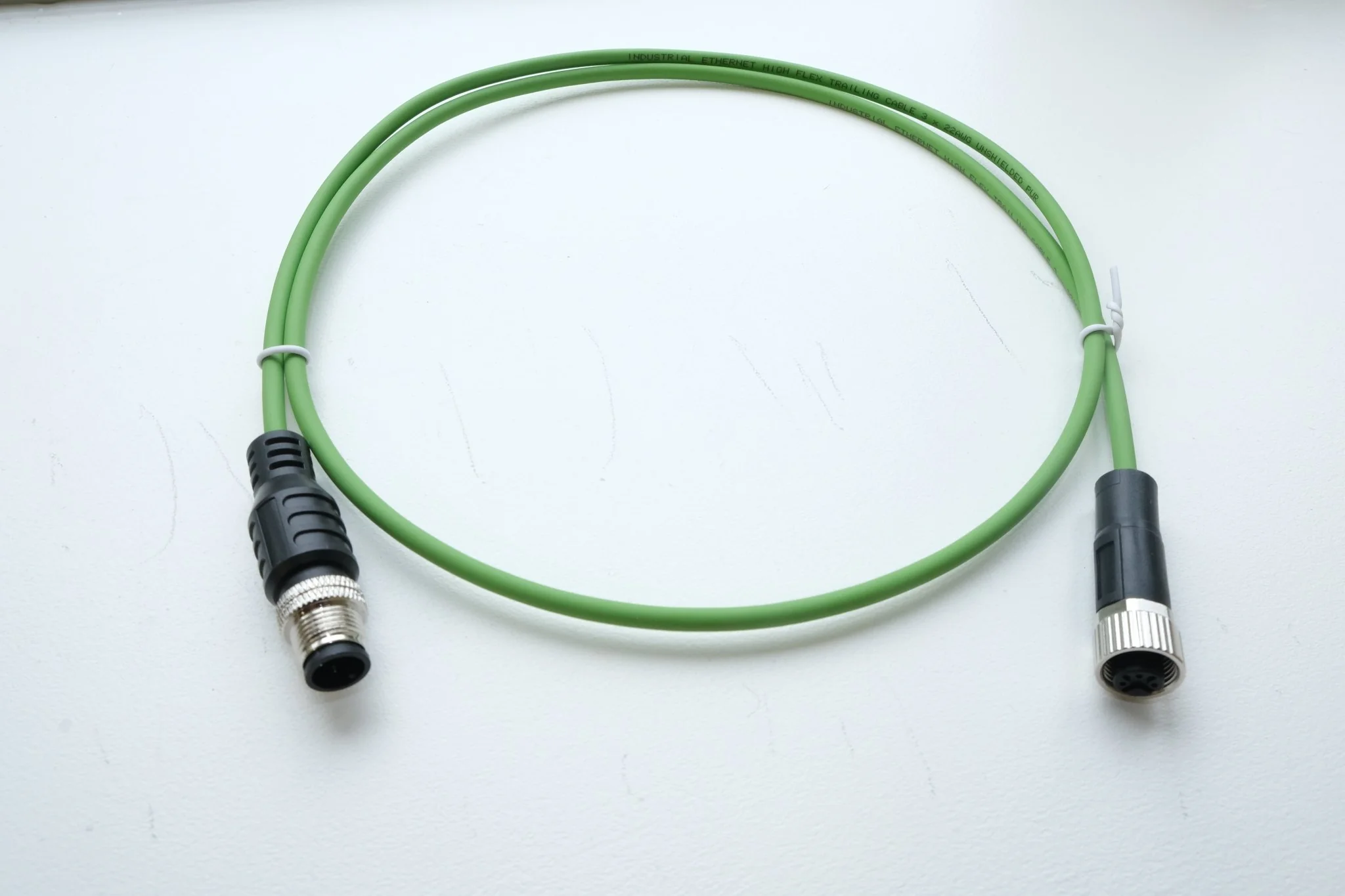

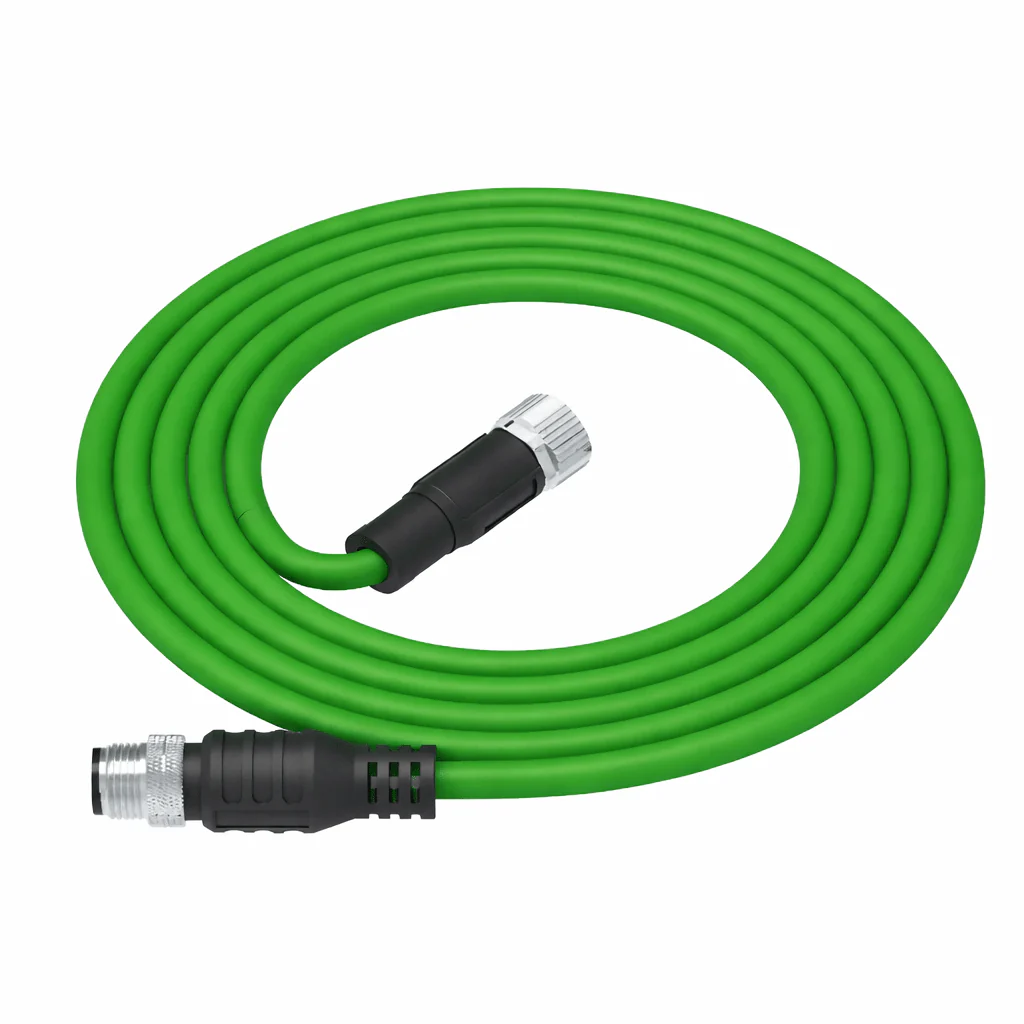

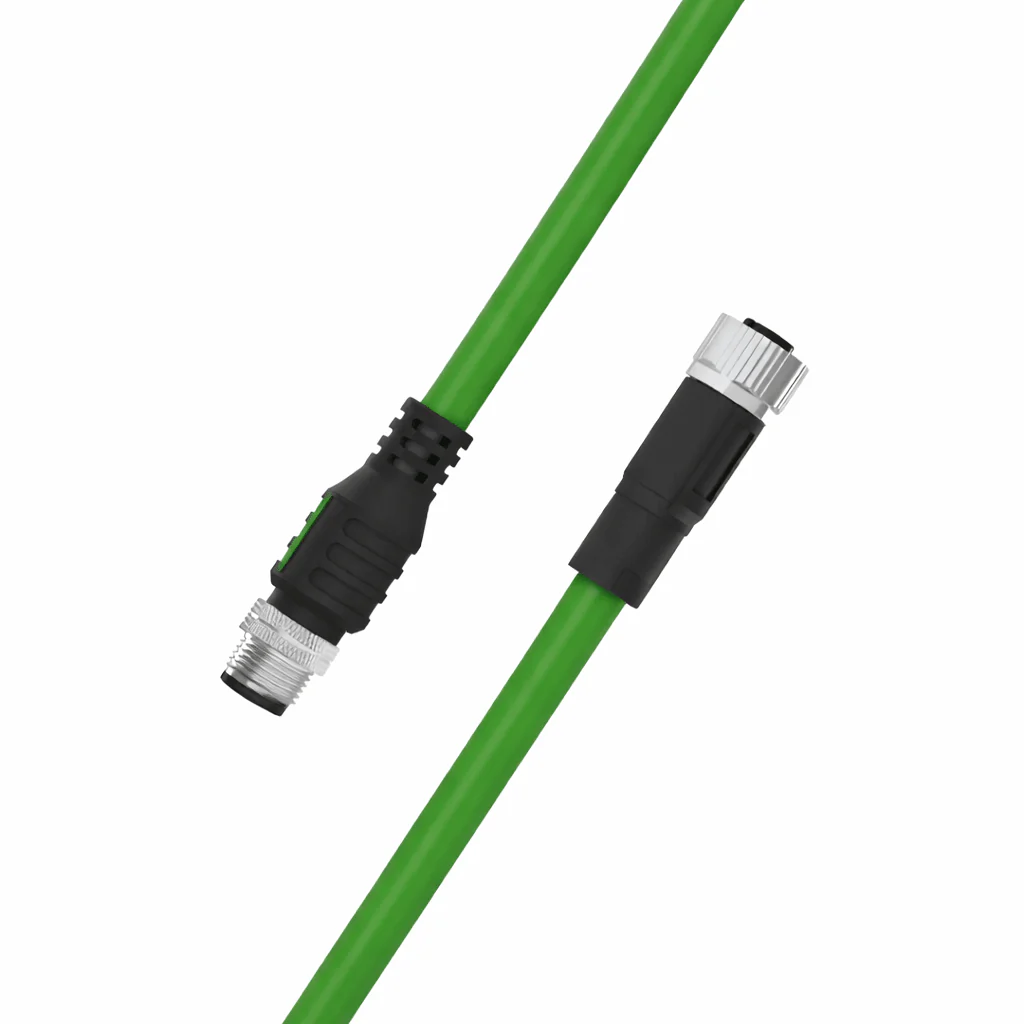

Featuring straight M12 A-coded male and female connectors, this cable provides secure plug-and-play extension between sensors, actuators and control equipment. The 3-pin configuration is widely used for standard sensor power and signal wiring in industrial automation systems.

Both connectors are overmoulded and IP67 rated for protection against dust and temporary water immersion. The halogen-free PUR jacket makes this cable suitable for drag chain and torsional stress applications, delivering resistance to oil, abrasion and continuous flexing in demanding industrial environments.

This unshielded version is ideal for general-purpose installations where EMI protection is not required.

Key Features

M12 A-Coded male to female straight connectors

3-pin configuration

Unshielded construction

Operating voltage up to 60V DC

Nominal voltage 300V

Maximum 4A per contact

IP67 rated connectors

PUR jacket for drag chain use

Suitable for industrial automation systems

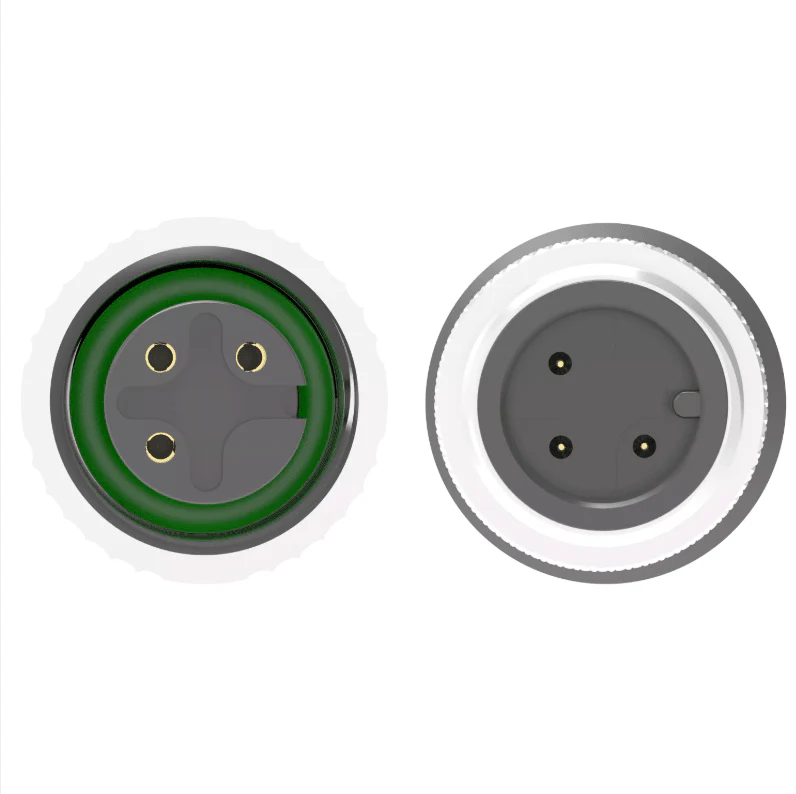

Connector Specifications

Connector A
Connection: M12 A-Coded
Gender: Male
Orientation: Straight
Poles: 3
Ingress Protection: IP67

Connector B
Connection: M12 A-Coded
Gender: Female
Orientation: Straight
Poles: 3
Ingress Protection: IP67

Cable Specifications

Shield Type: Unshielded
Conductor Structure: AWG22 (series typical)
Jacket Material: PUR
Cable Colour: Black
UL Type: UL AWM 20549
Length Range: 0.3m – 20m

Electrical Data

Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A

Typical Applications

Industrial sensors and actuators

PLC I/O connections

Robotics and automation systems

Machine tools

Production equipment

Material handling systems
