M12 A-Coded Male to Female 5-Pin Shielded Sensor Cable – PUR Drag Chain, IP67

Industrial M12 A-Coded 5-Pin Shielded Sensor Cable for Automation Systems

This M12 A-Coded male to female 5-pole cable assembly is designed for industrial sensor and actuator applications requiring reliable signal transmission and enhanced EMI protection.

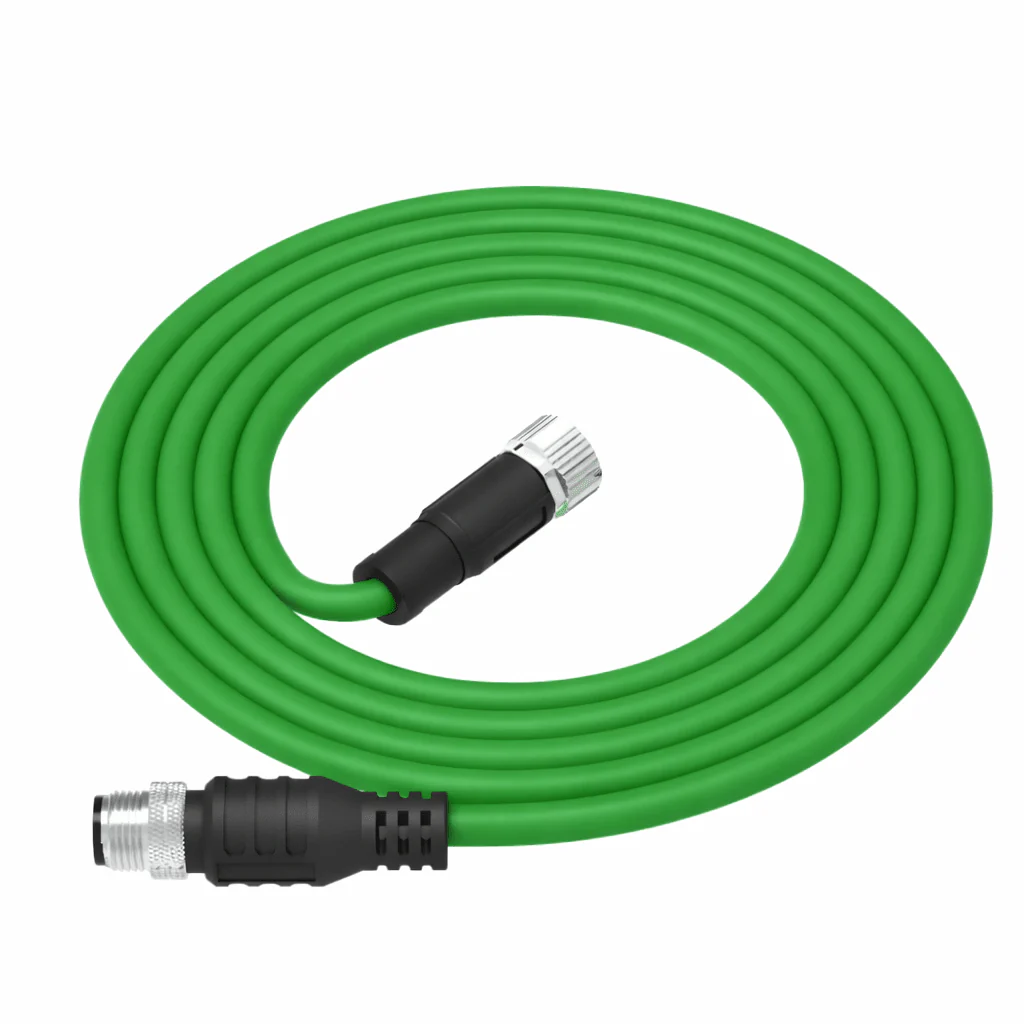

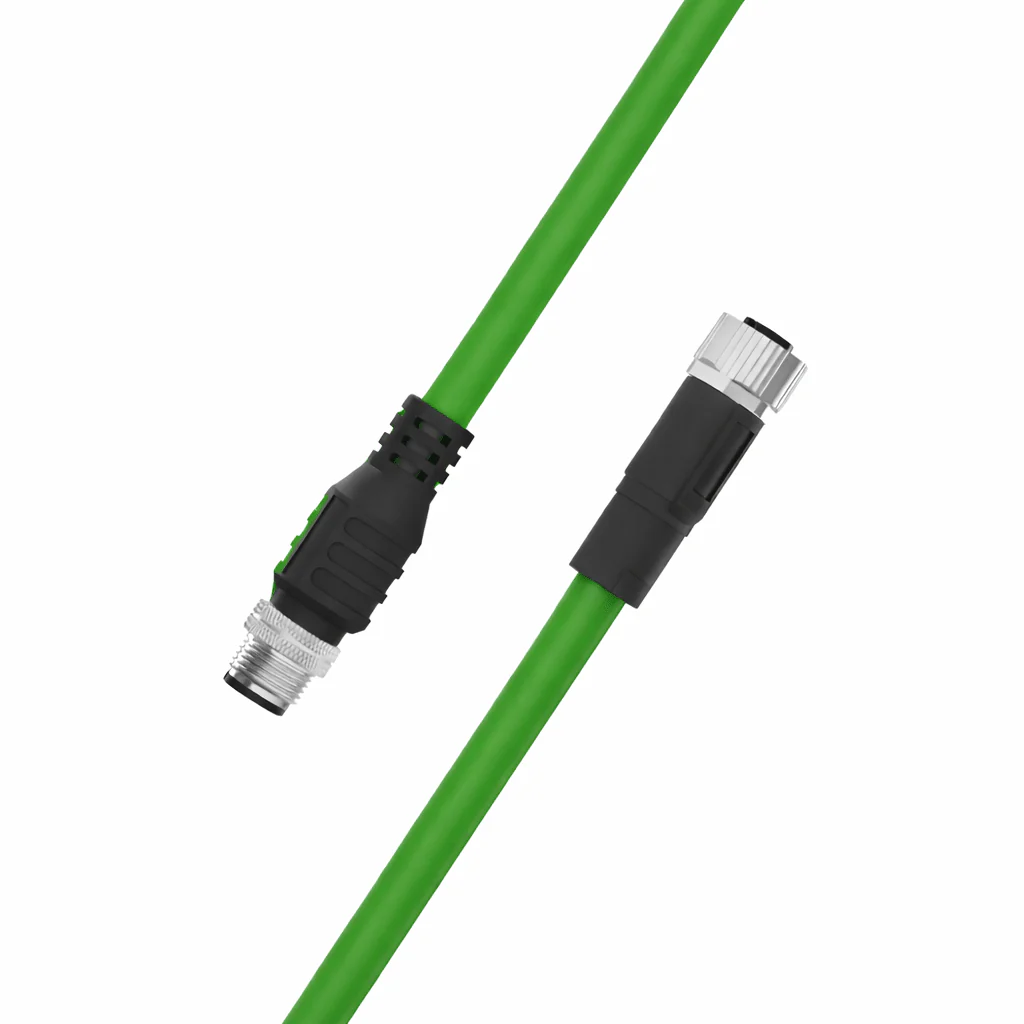

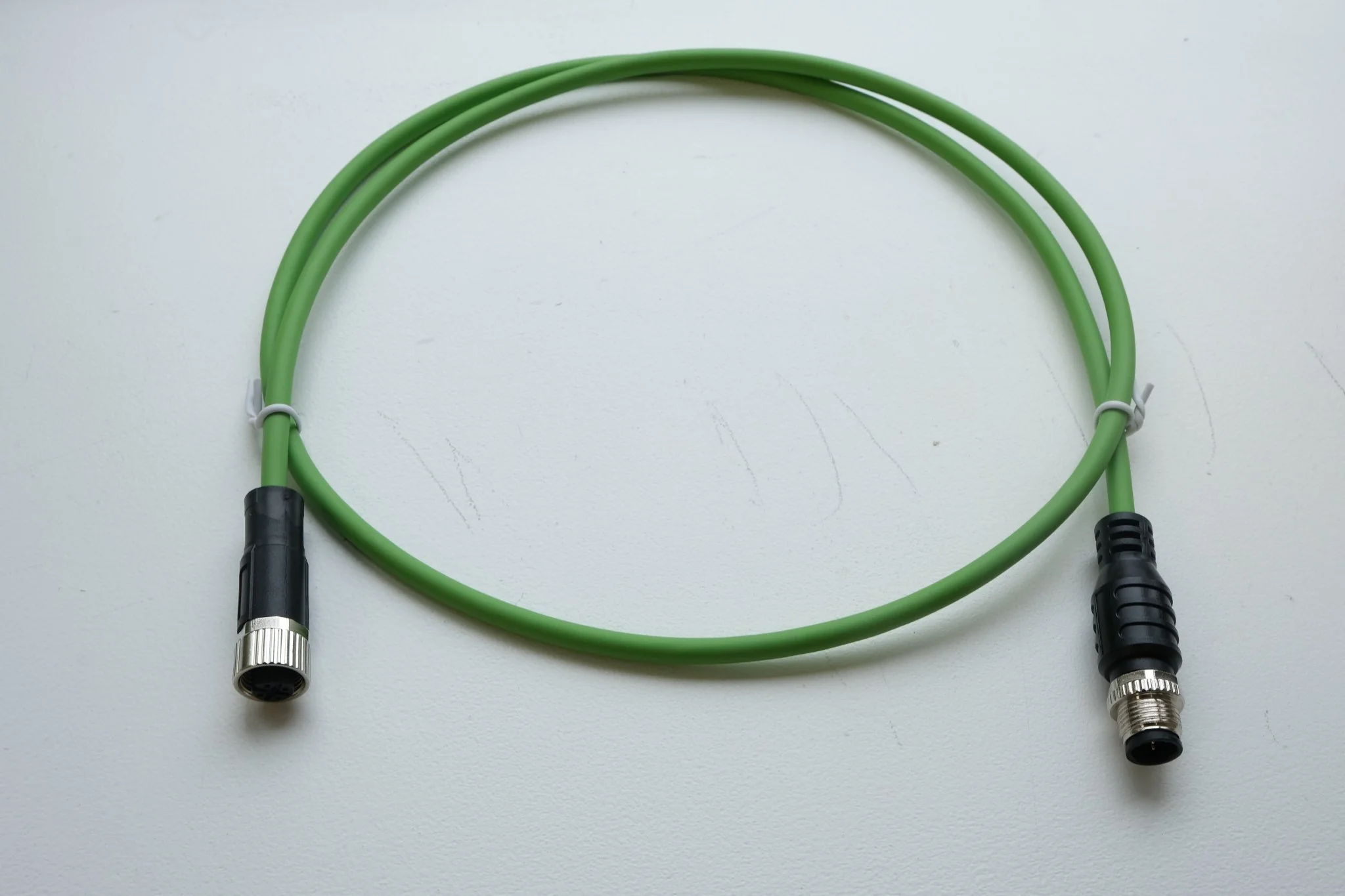

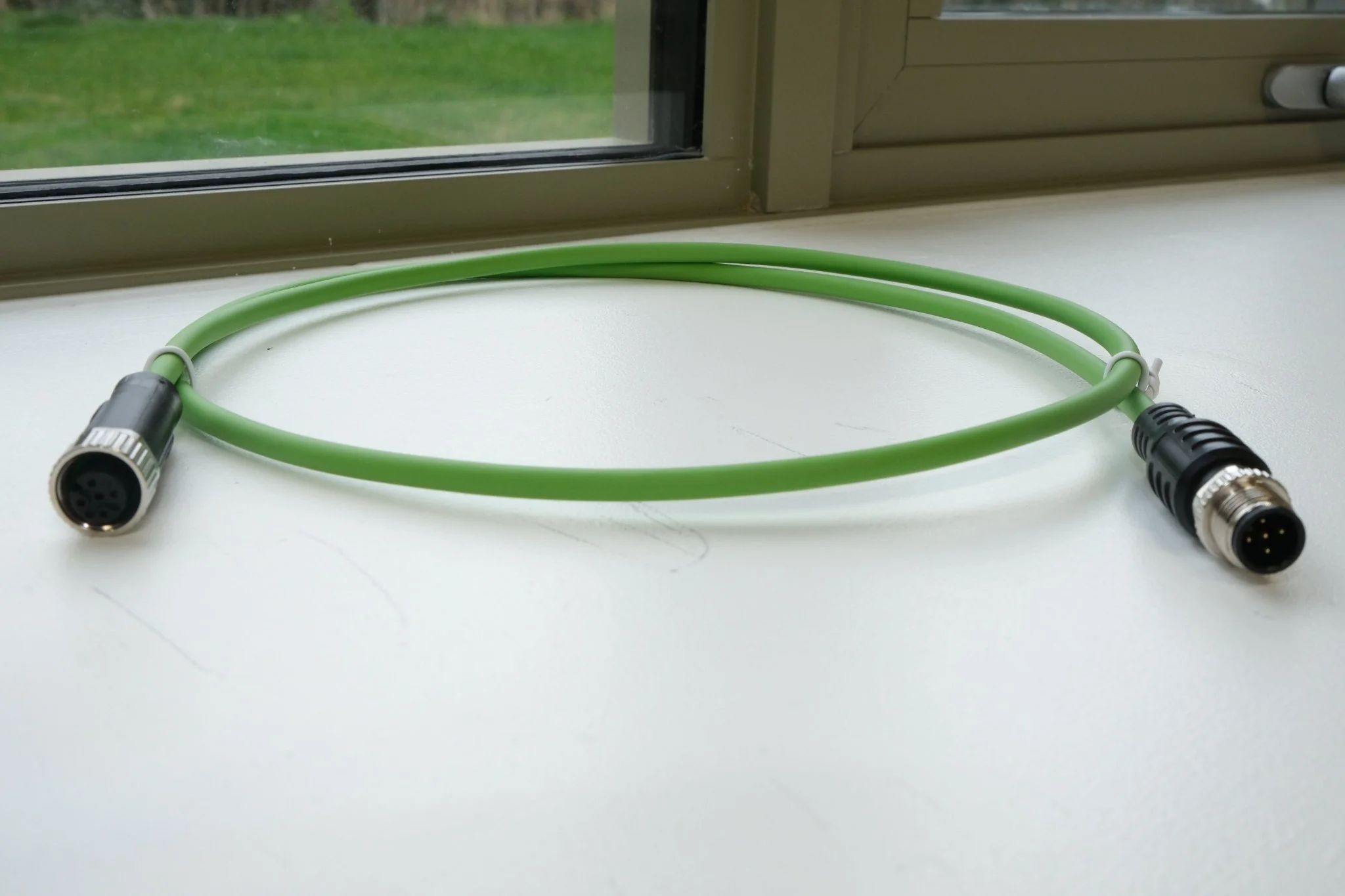

Featuring straight M12 A-coded male and female connectors, this fully assembled cable provides secure plug-and-play connectivity between sensors, actuators and control equipment. The 5-pin configuration supports power, signal and auxiliary functions commonly used in automation environments.

Constructed with shielded conductors and full 360° EMI protection, this cable ensures stable signal integrity in electrically noisy industrial installations. Both overmoulded M12 connectors are IP67 rated, offering protection against dust and temporary water immersion.

The halogen-free PUR jacket makes this assembly suitable for drag chain and torsional stress applications, delivering resistance to oil, abrasion and continuous flexing in demanding industrial conditions.

Key Features

• M12 A-Coded male to female straight connectors

• 5-pin configuration

• Shielded construction with EMI protection

• Operating voltage up to 60V DC

• Nominal voltage 300V

• Maximum 4A per contact

• IP67 rated connectors

• PUR jacket for drag chain use

• Suitable for industrial automation systems

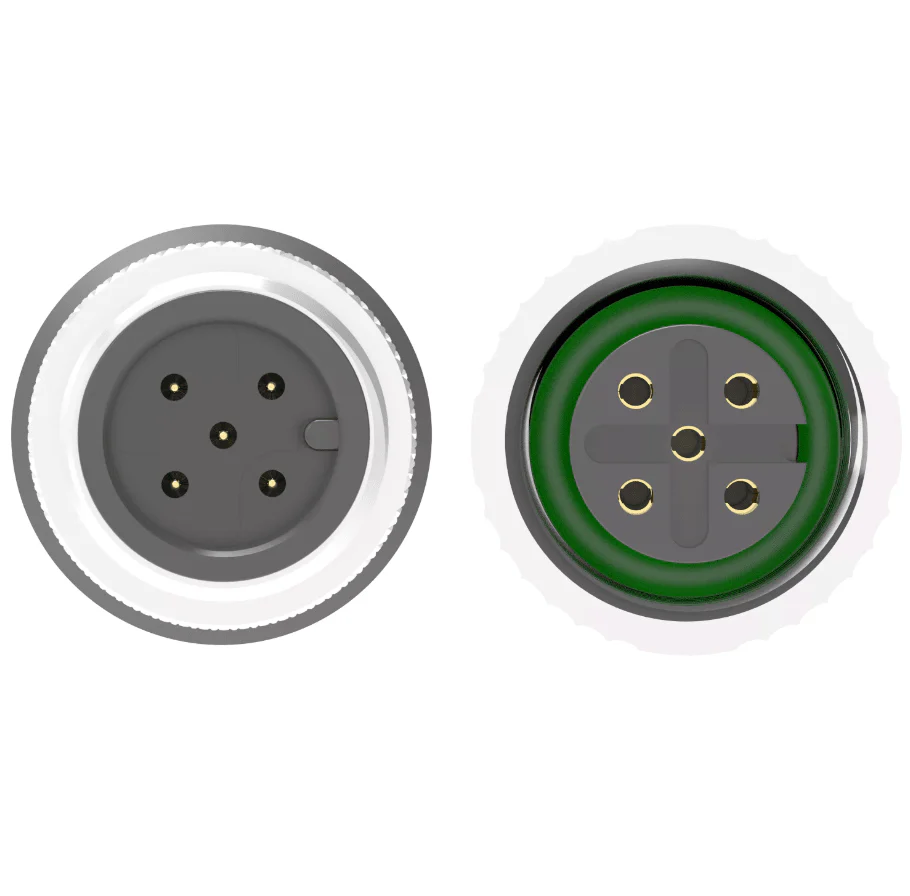

Connector Specifications

Connector A
Connection: M12 A-Coded
Gender: Male
Orientation: Straight
Poles: 5
Ingress Protection: IP67

Connector B
Connection: M12 A-Coded
Gender: Female
Orientation: Straight
Poles: 5
Ingress Protection: IP67

Cable Specifications

Shield Type: Shielded
Conductor Structure: AWG22 (series typical)
Jacket Material: PUR
Cable Colour: Green
UL Type: UL AWM 20549
Length Range: 0.3m – 20m

Electrical Data

Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A
Contact Resistance: Max. 30 mΩ

Typical Applications

• Industrial sensors and actuators

• PLC I/O connections

• Robotics and automation

• Machine tools

• Production equipment

• Process control systems
