M12 B-Coded Male Right Angle to Open 4-Pin Shielded PUR Cable – Drag Chain, IP67

Industrial M12 B-Coded Fieldbus Cable for Profibus and DeviceNet

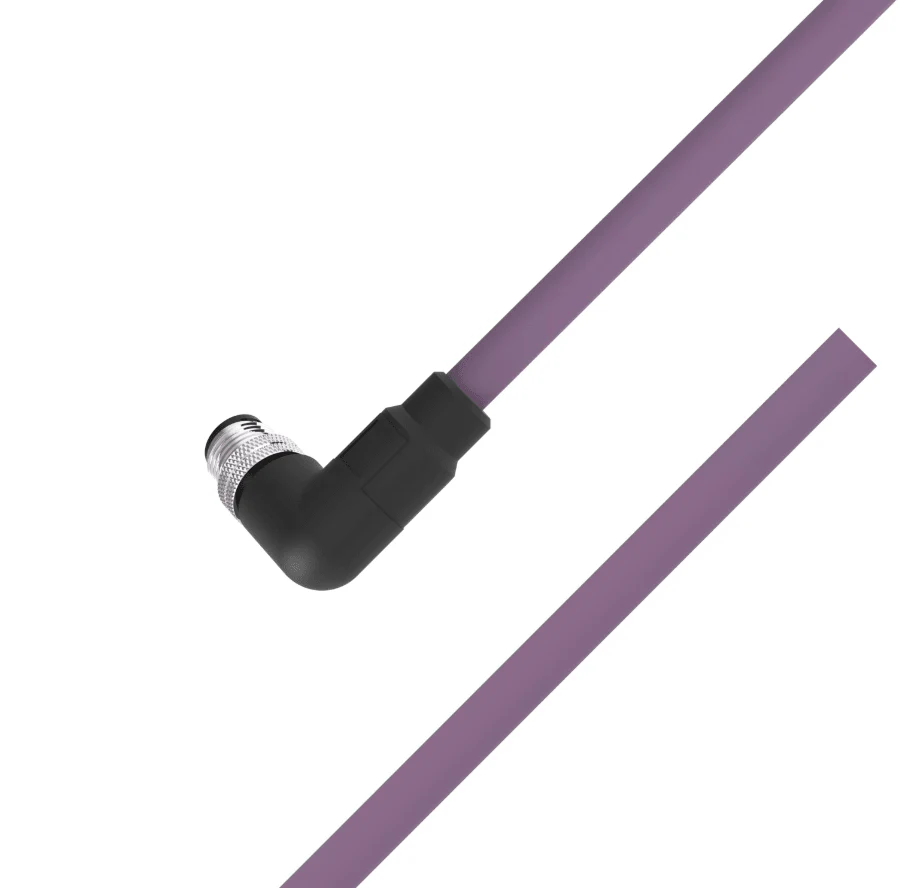

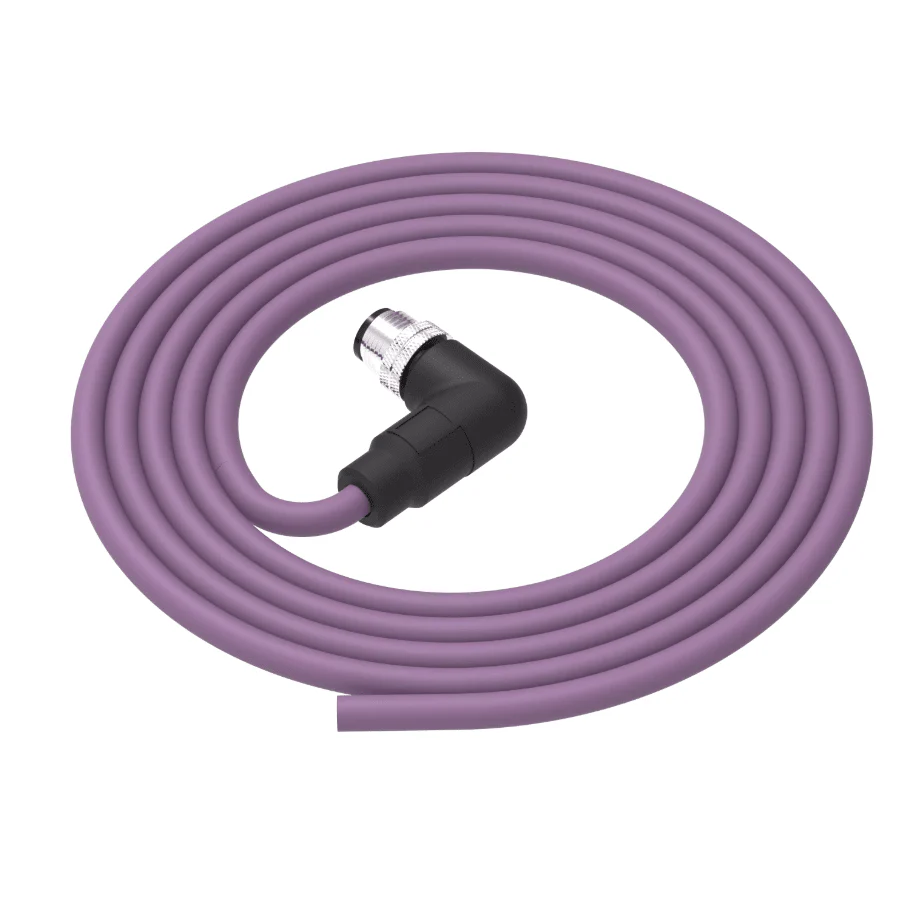

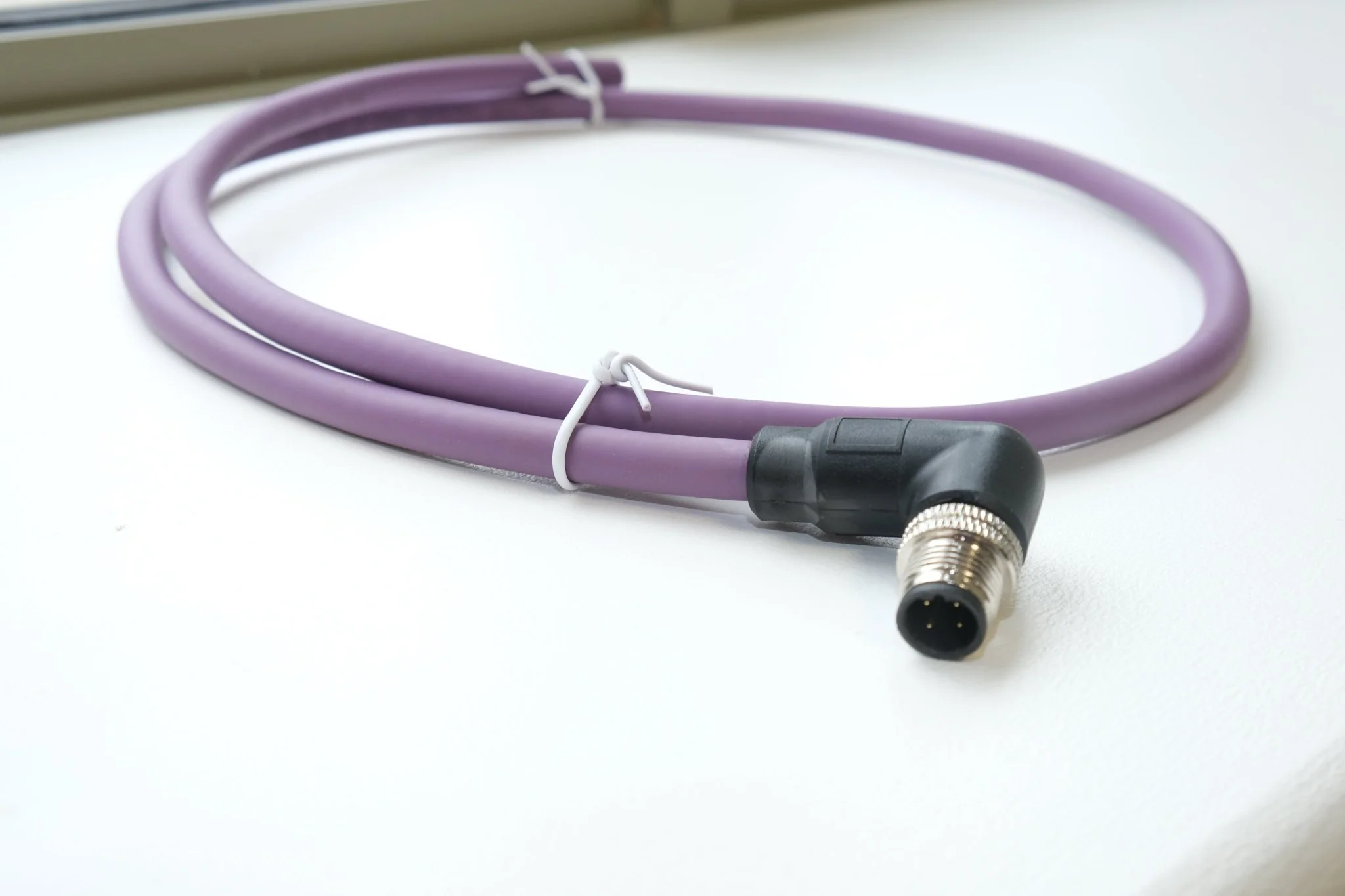

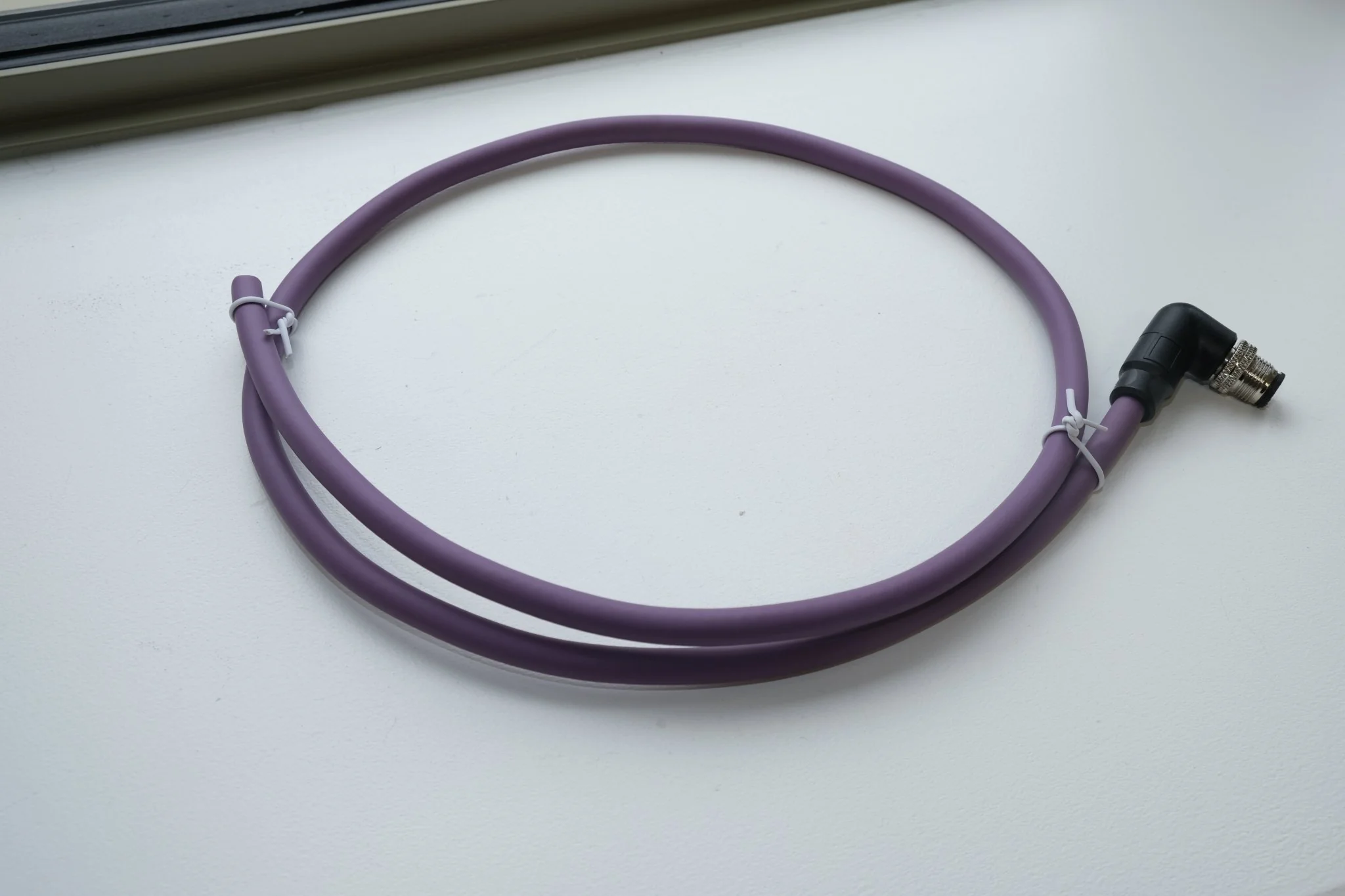

This M12 B-Coded male right angle to open 4-position cable assembly is designed for industrial fieldbus and communication systems including Profibus, DeviceNet and CC-Link applications.

The right-angle M12 B-coded male connector allows space-saving installation in compact control cabinets, machinery and automation equipment. The open cable end provides flexibility for direct field termination into terminals, PLCs or custom harness assemblies.

Built with shielded AWG23 conductors and 360° EMI protection, this assembly ensures reliable signal and data transmission in electrically noisy industrial environments. The overmoulded connector is IP67 rated for protection against dust and temporary immersion in water.

The halogen-free PUR outer jacket makes this cable suitable for drag chain and torsional stress applications, offering excellent resistance to oil, abrasion and mechanical wear.

Key Features

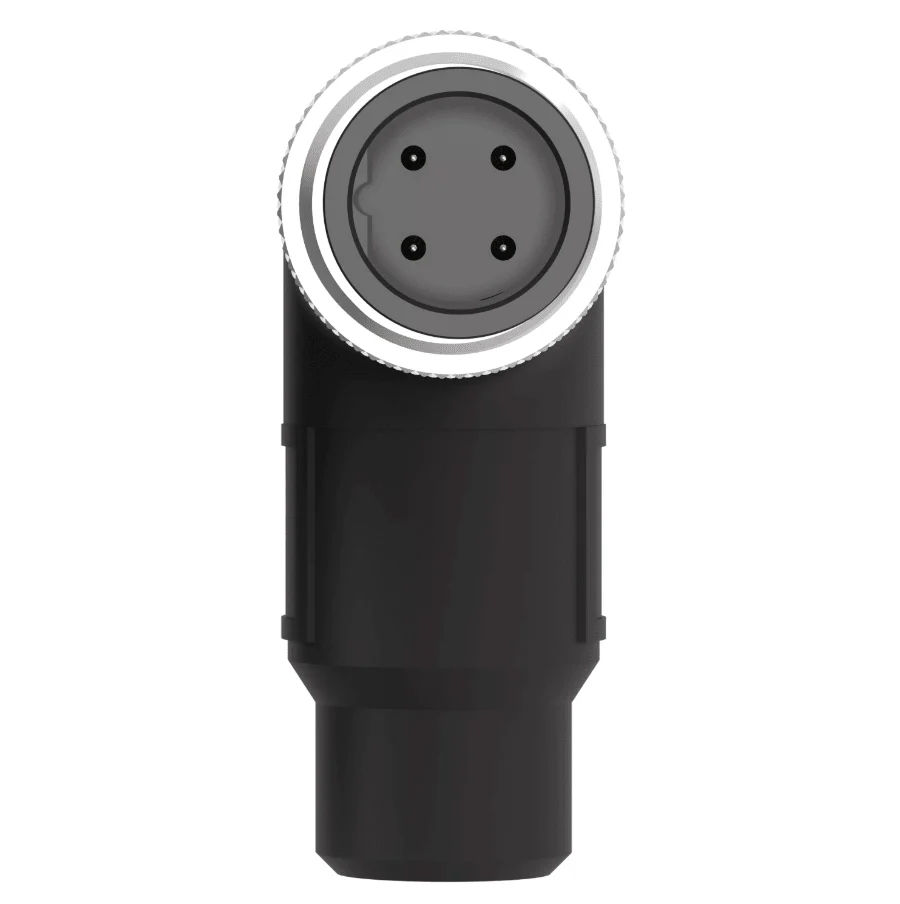

• M12 B-Coded male right angle connector

• Open cable end for field termination

• 4-pin configuration

• Shielded construction with 360° EMI protection

• Rated up to 250V

• Maximum 4A per contact

• IP67 rated connector

• PUR jacket for drag chain use

• Halogen-free construction

• Suitable for Profibus, DeviceNet and CC-Link

Connector Specifications

Connector A
Connection: M12 B-Coded
Gender: Male
Orientation: Right Angle
Poles: 4
Ingress Protection: IP67

Connector B
Connection: Open cable end
Positions: 4

Cable Specifications

Shield Type: Shielded
Conductor Structure: AWG23
Jacket Material: PUR
Cable Colour: Red lilac (RAL 4001)
UL Type: UL AWM 20549
Length Range: 0.3m – 20m

Electrical Data

Rated Voltage: 250V
Operating Current per Contact: Max. 4A
Contact Resistance: Max. 10 mΩ
Insulation Resistance: Max. 10 mΩ

Typical Applications

• Profibus networks

• DeviceNet systems

• CC-Link communication

• Industrial automation

• Robotics and material handling

• Production equipment and process control
