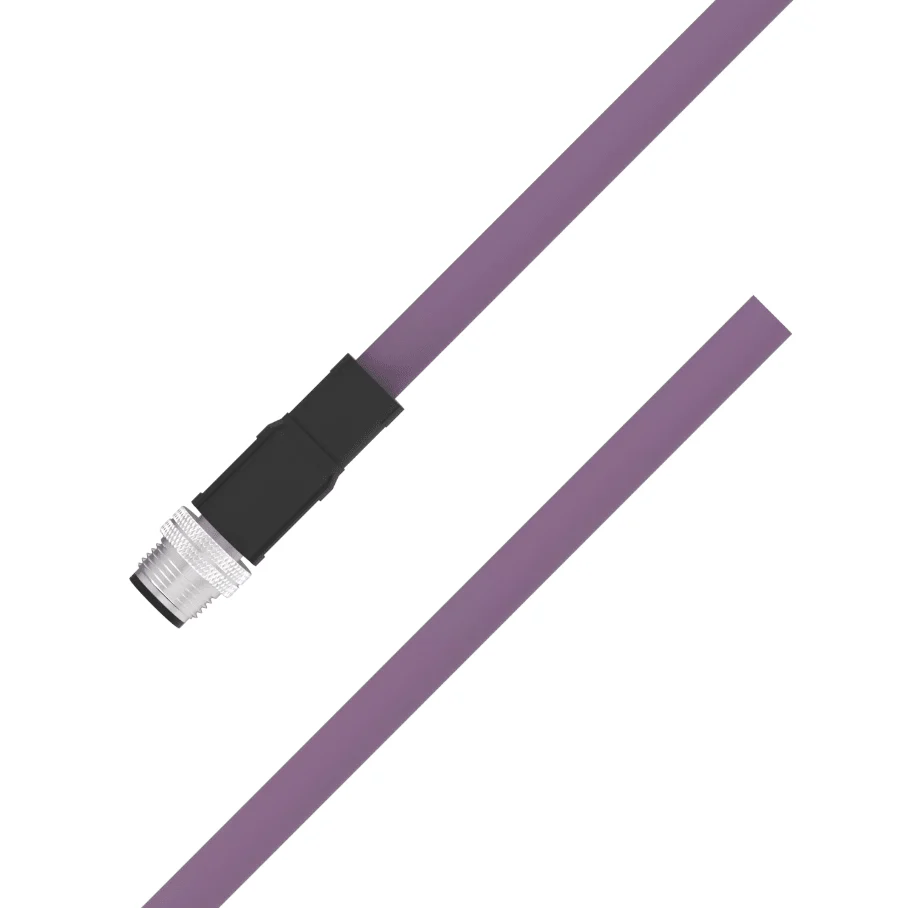

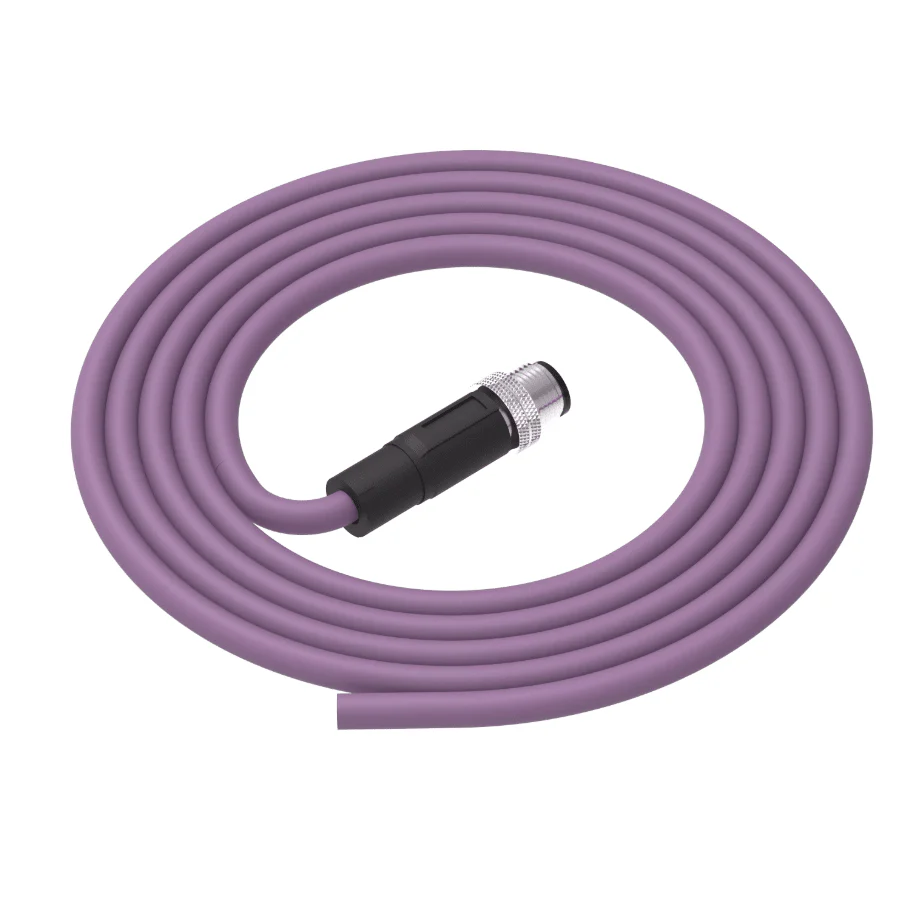

M12 B-Coded Male Straight to Open 4-Pin Shielded PUR Cable – IP67 Drag Chain

Industrial M12 B-Coded Fieldbus Cable for Profibus and DeviceNet Systems

This M12 B-Coded male straight to open 4-position cable assembly is designed for industrial fieldbus and communication networks including Profibus, DeviceNet and CC-Link applications.

The straight M12 B-coded male connector enables secure and reliable connections in industrial control systems, automation equipment and process environments. The open cable end provides flexibility for field termination into PLCs, control cabinets or custom wiring assemblies.

Constructed with shielded AWG23 conductors and 360° EMI protection, this cable ensures stable signal and data transmission in electrically noisy industrial environments. The overmoulded connector is IP67 rated for protection against dust and temporary immersion in water.

The halogen-free PUR outer jacket makes this assembly suitable for drag chain applications and torsional stress environments, offering resistance to oil, abrasion and mechanical wear.

Key Features

• M12 B-Coded male straight connector

• Open cable end for flexible termination

• 4-pin configuration

• Shielded construction with full EMI protection

• Rated up to 250V

• Maximum 4A per contact

• IP67 rated connector

• PUR jacket for drag chain suitability

• Halogen-free design

• Compatible with Profibus, DeviceNet and CC-Link

Connector Specifications

Connector A

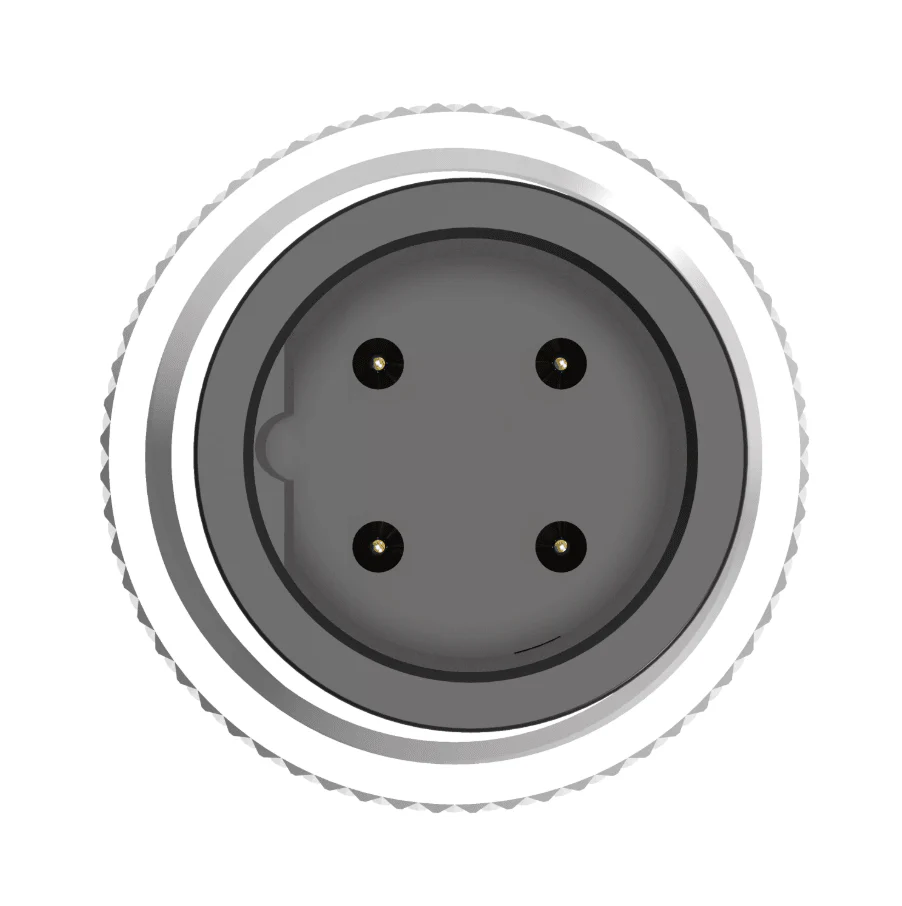

Connection: M12 B-Coded
Gender: Male
Orientation: Straight
Poles: 4
Ingress Protection: IP67

Connector B
Connection: Open cable end
Positions: 4

Cable Specifications

Shield Type: Shielded
Conductor Structure: AWG23
Jacket Material: PUR
Cable Colour: Red lilac (RAL 4001)
UL Type: UL AWM 20549
Length Range: 0.3m – 20m

Electrical Data

Rated Voltage: 250V
Operating Current per Contact: Max. 4A
Contact Resistance: Max. 10 mΩ
Insulation Resistance: Max. 10 mΩ

Typical Applications

• Profibus networks

• DeviceNet communication systems

• CC-Link industrial networks

• Industrial automation equipment

• Robotics and material handling

• Production and process control systems
