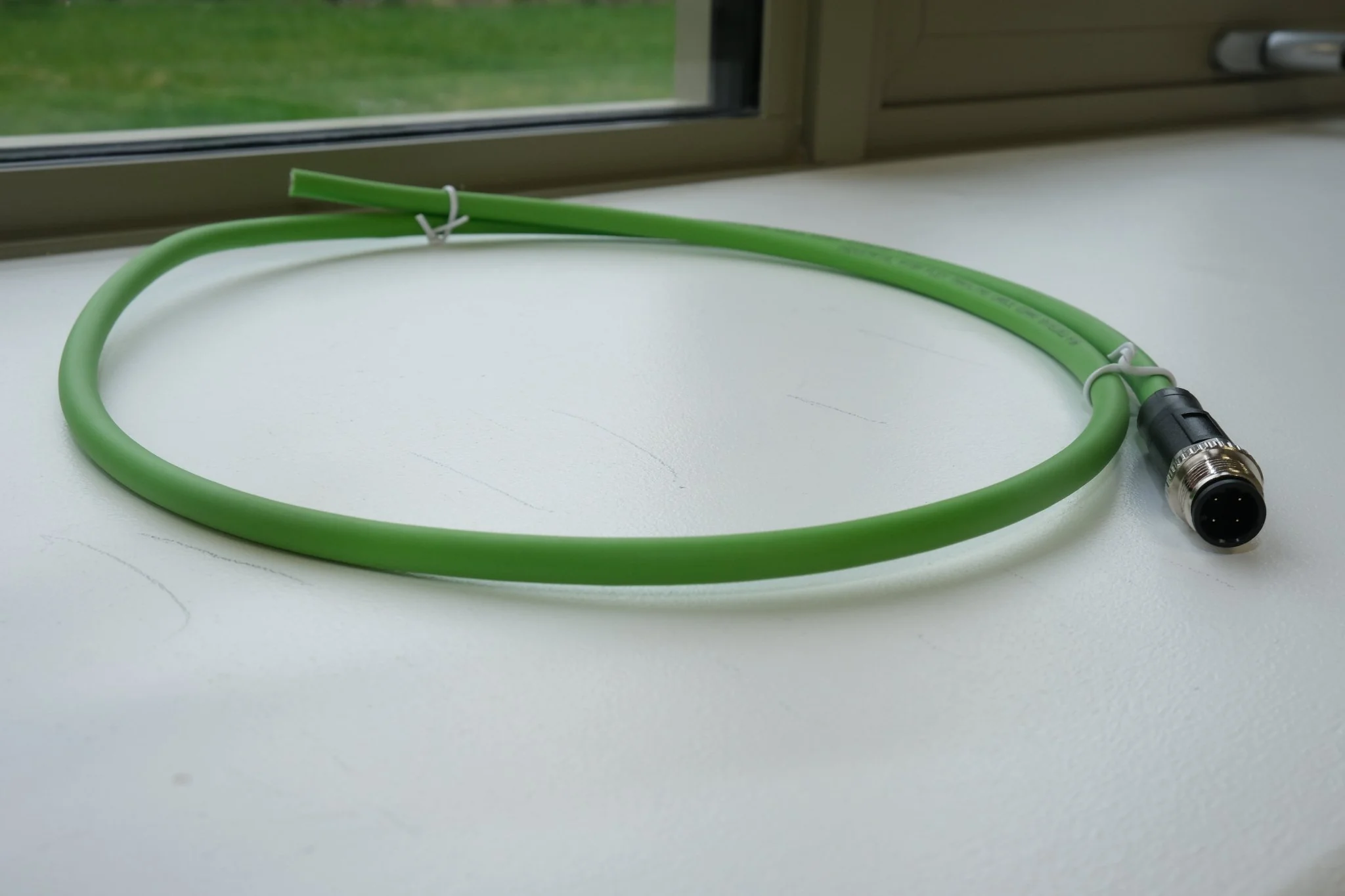

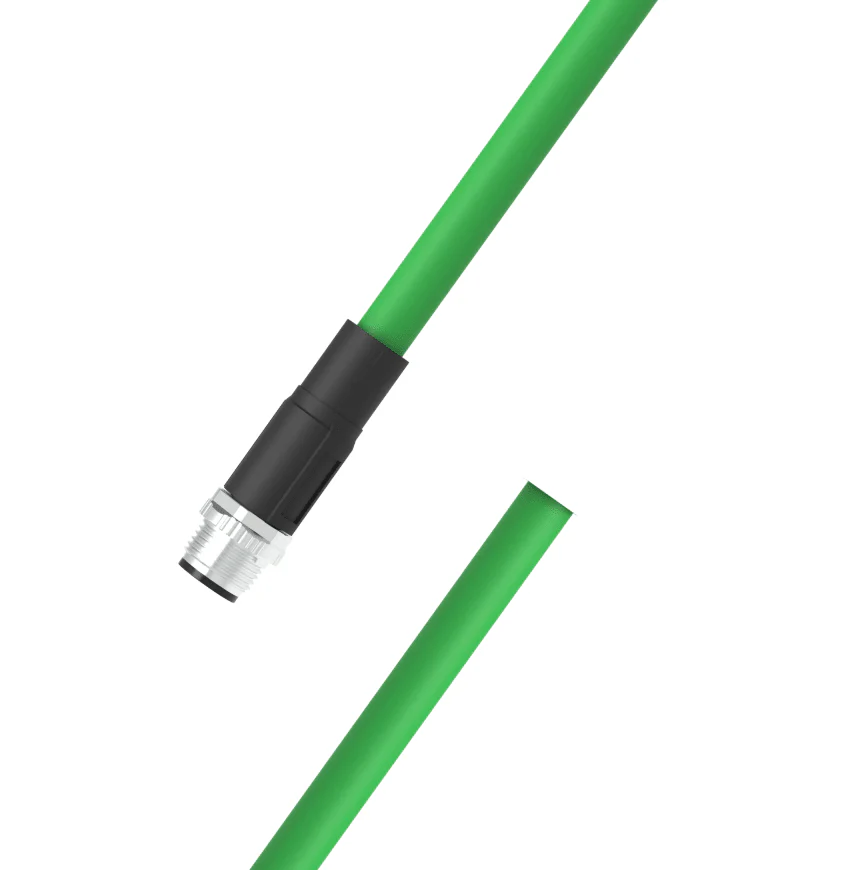

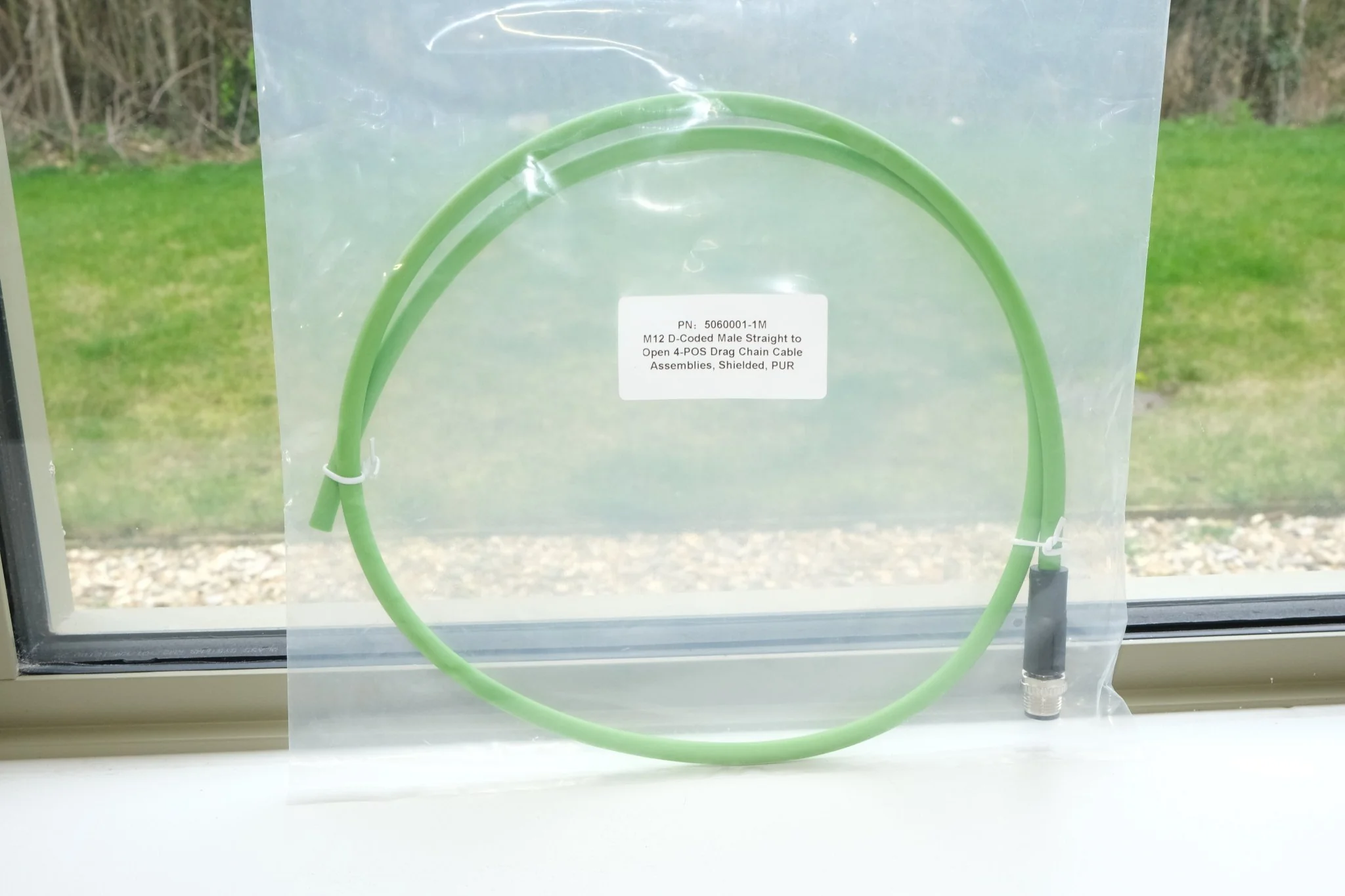

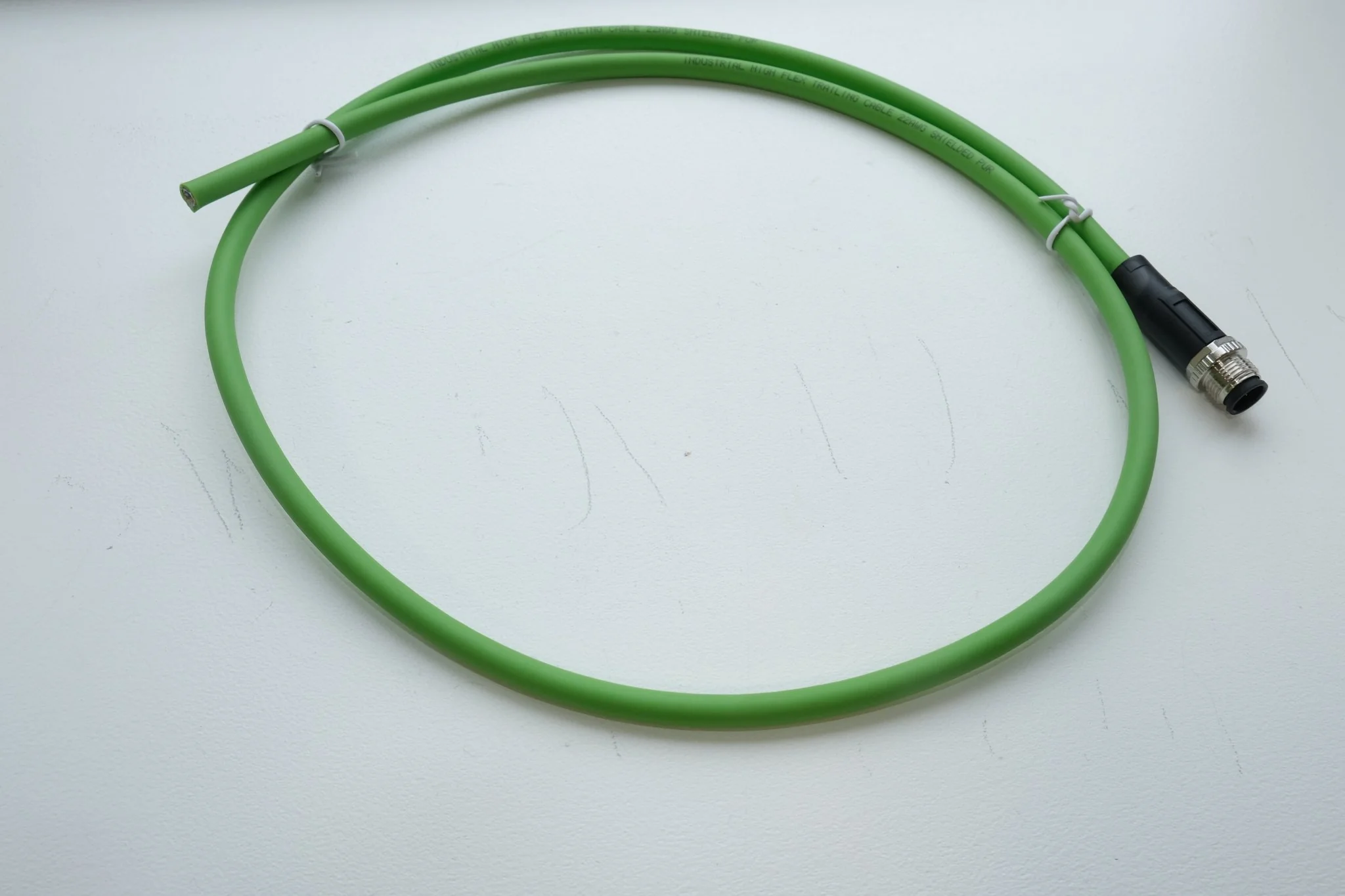

M12 D-Coded Male to Open End 4-Pin Cable – Shielded PUR Drag Chain, IP67

Industrial M12 D-Code Cable for Field Wiring and Motion Applications

This M12 D-Coded male straight to open end 4-position cable assembly is designed for industrial Ethernet and fieldbus applications requiring robust, reliable connectivity in demanding environments.

Featuring a shielded Category 5e construction, this cable supports Fast Ethernet (100 Mbps) transmission and is suitable for industrial switches, sensors, control systems, and automation equipment.

The overmoulded M12 D-Code male connector provides IP67 ingress protection, ensuring secure and stable connections in harsh environments. The open cable end allows for flexible field termination or integration into control cabinets and custom wiring assemblies.

Manufactured with a PUR jacket, this cable is specifically engineered for drag chain use and continuous flex applications, offering high resistance to oil, UV exposure, EMI, and mechanical stress.

Key Features

• M12 D-Coded male straight to open 4-position

• Shielded cable construction

• Suitable for Fast Ethernet (100 Mbps)

• PUR outer jacket for drag chain and harsh environments

• IP67 rated M12 connector

• Oil resistant and UV resistant

• 5 million flex cycles (trailing)

• 2 million torsion cycles

• Designed for industrial automation and fieldbus systems

Connector Specifications

Connector A

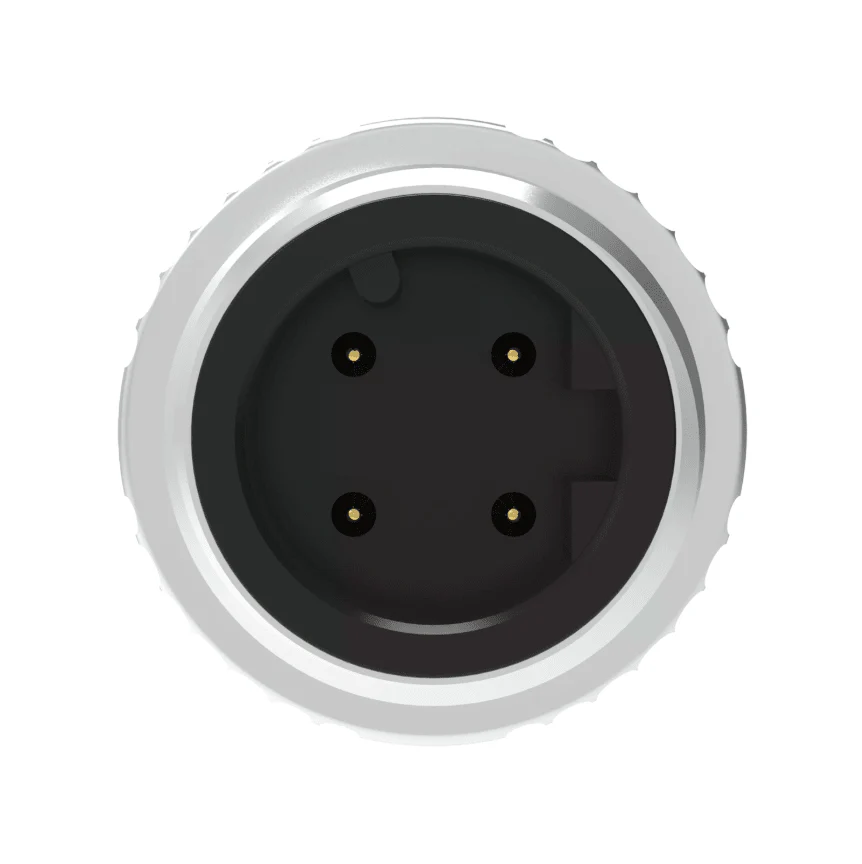

Connection: M12 D-Code
Gender: Male
Poles: 4 Pin
Orientation: Straight
Ingress Protection: IP67

Connector B
Connection: Open cable end
Positions: 4

Cable Specifications

Category: Cat5e
Shielding: Shielded
Jacket Material: PUR
Colour: Green
Application: Drag chain suitable

Typical Applications

• Industrial Ethernet networks

• Factory automation

• PLC and control panel wiring

• Industrial switches and sensors

• Fieldbus systems

• Harsh environment installations
