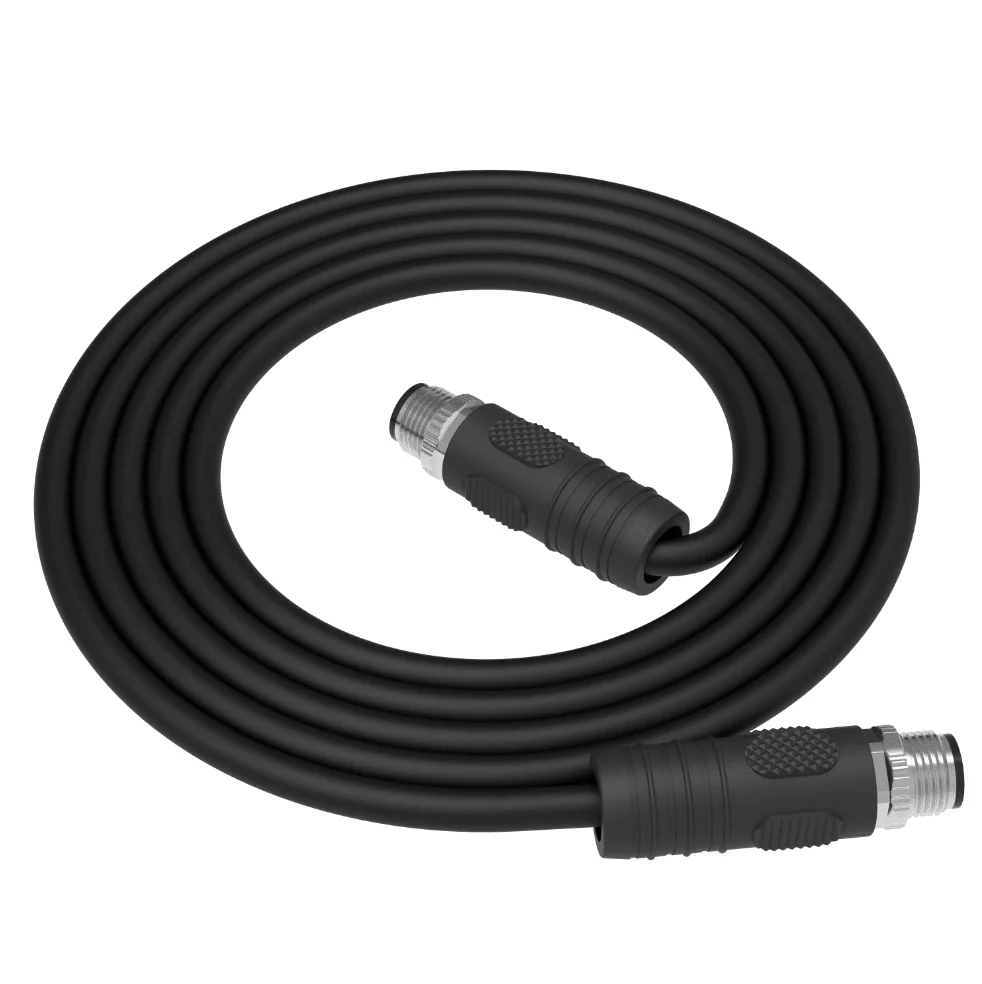

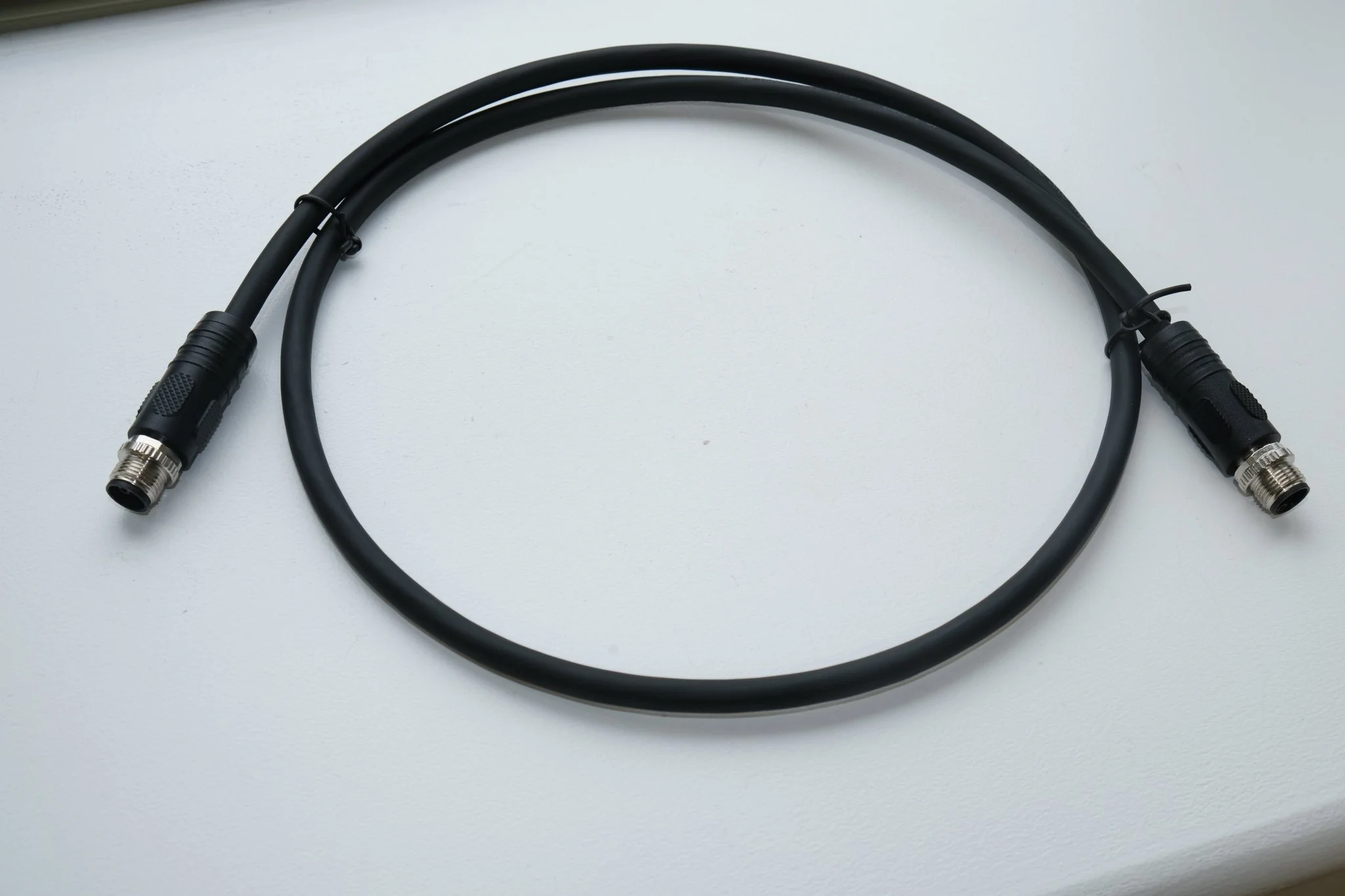

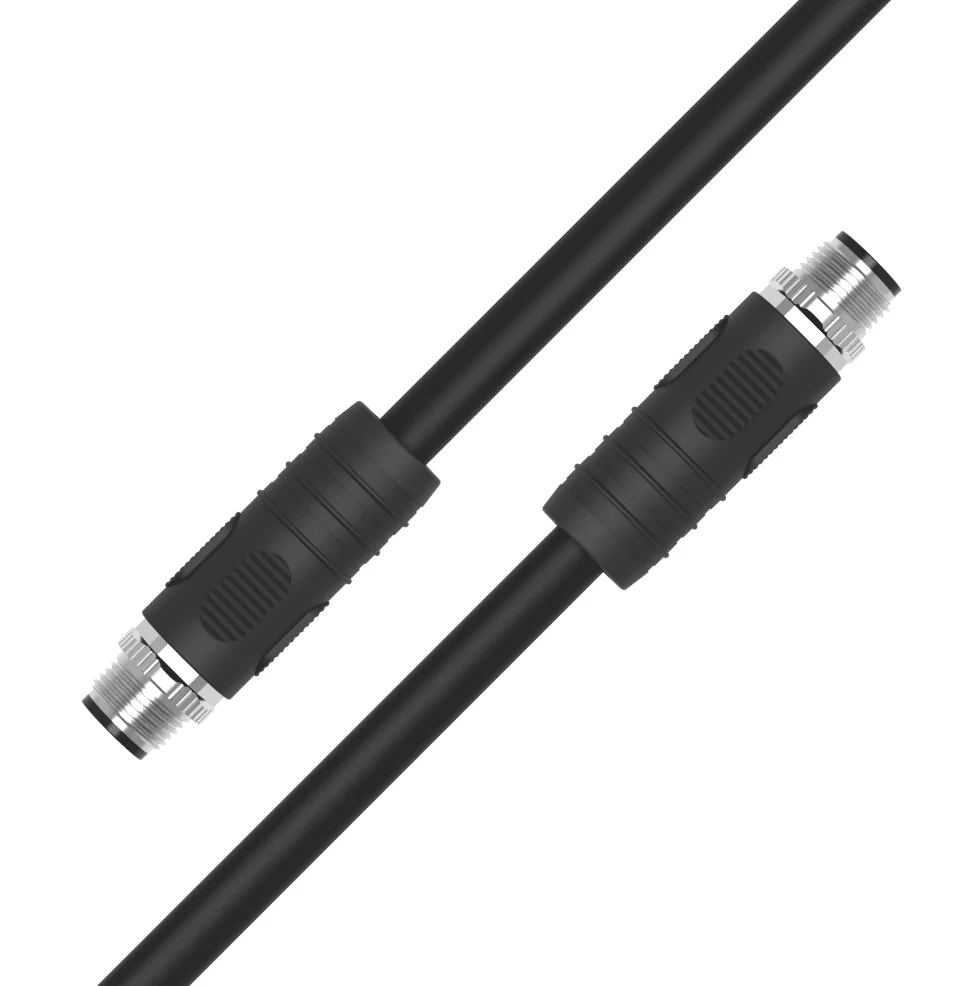

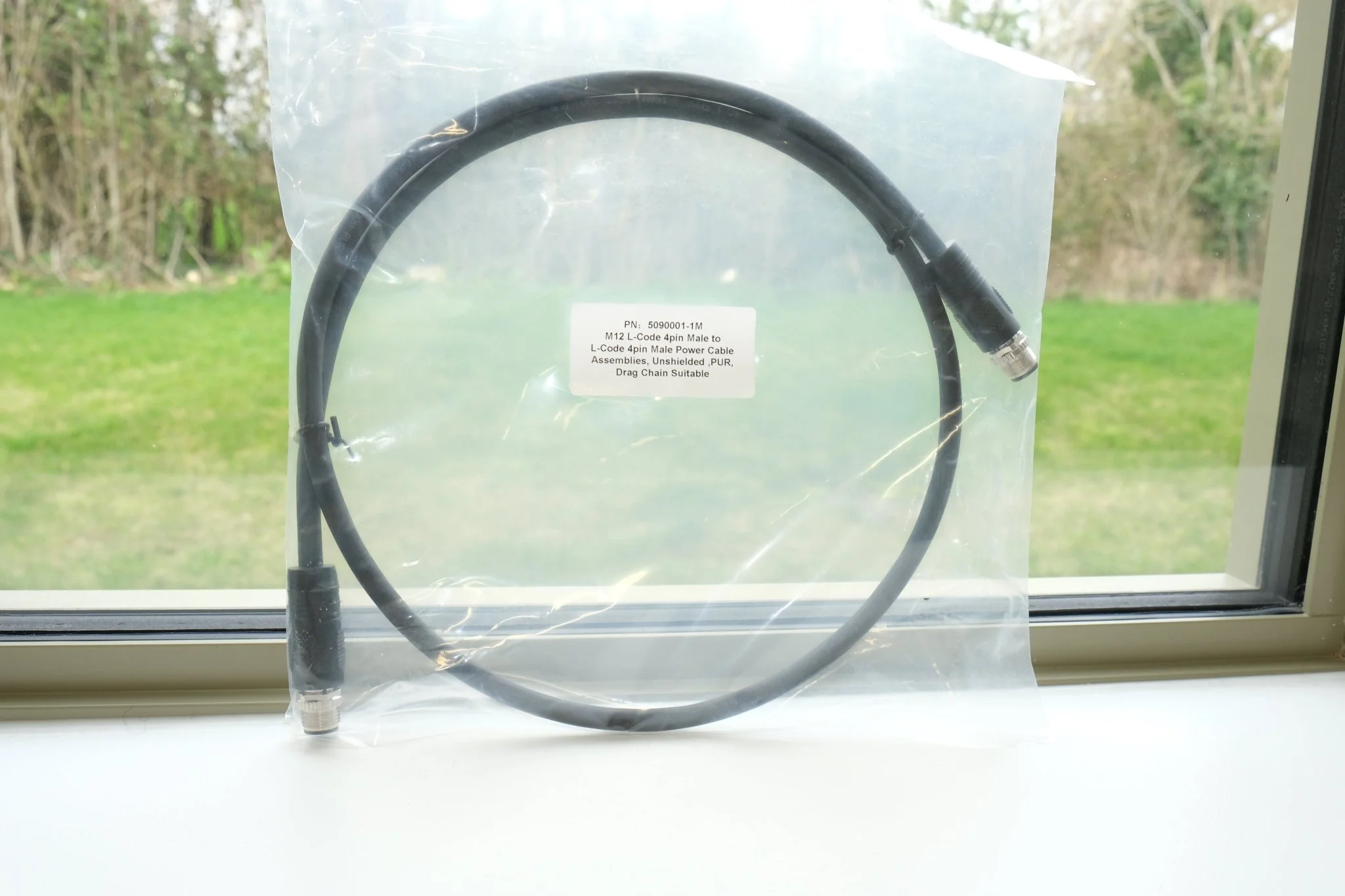

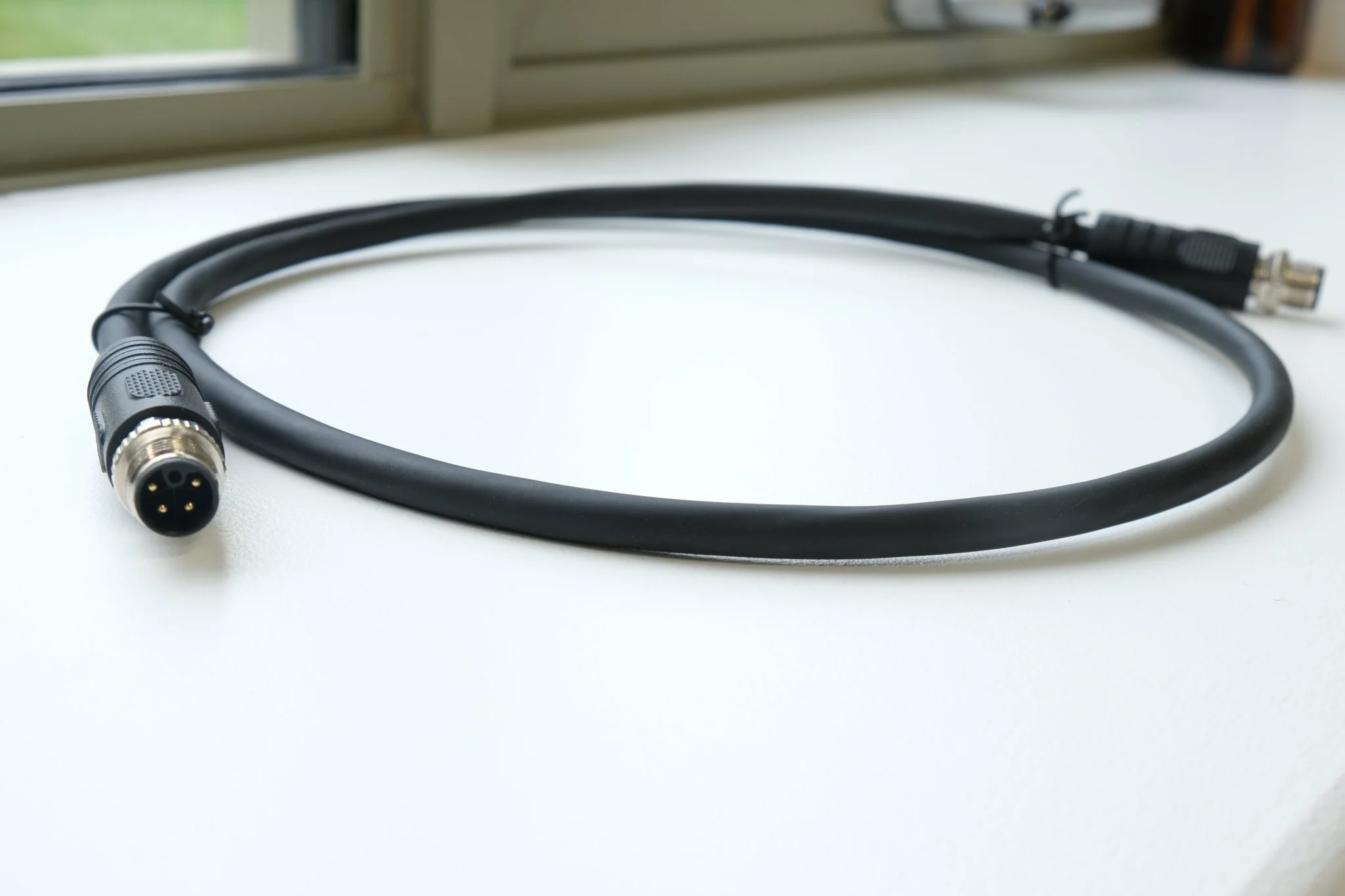

M12 L-Coded Male to Male 4-Pin 16AWG Power Cable – PUR Drag Chain, IP67

High-Current M12 L-Coded Power Cable for Industrial 24V Systems

This M12 L-Coded male to male straight 4-position cable assembly is designed for high-current DC power distribution in industrial automation and PROFINET power supply applications.

Engineered to IEC M12 standards, L-coded connectors are specifically developed for 24V DC systems requiring higher current capacity than standard A-coded connectors. With 16AWG (1.5mm²) copper conductors and a rating of up to 63V DC, this cable supports demanding power delivery applications such as motors, drives, network devices, fieldbus I/O modules and valve systems.

The compact M12 L-code design delivers significantly more power than traditional M12 connectors while reducing panel space requirements compared to larger 7/8” power connectors.

Overmoulded connectors provide IP67 ingress protection for reliable operation in harsh environments. The PUR outer jacket makes this cable suitable for drag chain use and continuous motion applications, offering excellent resistance to oil, abrasion and mechanical stress.

Key Features

M12 L-Coded male to male straight

4-pin high-current power connector

16AWG (1.5mm²) copper conductors

Rated up to 63V DC

Suitable for up to 16A per pin (application dependent)

IP67 rated connectors

PUR jacket for drag chain suitability

Compact alternative to 7/8” power connectors

Designed for 24V industrial power distribution

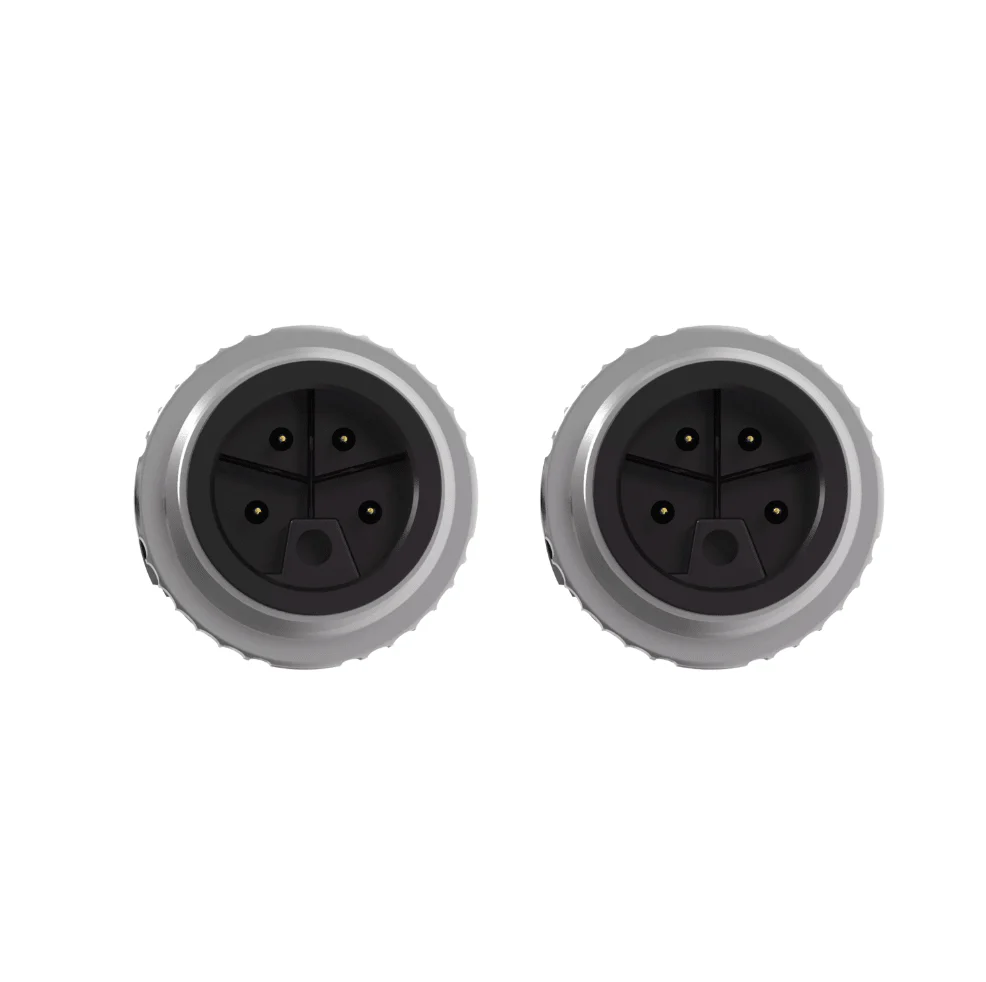

Connector Specifications

Connector A
Connection: M12 L-Coded
Gender: Male
Poles: 4
Orientation: Straight

Connector B
Connection: M12 L-Coded
Gender: Male
Poles: 4
Orientation: Straight

Cable Specifications

Cable Type: L-Coded Power Cable
Conductor Material: Copper
Conductor Structure: AWG16 (1.5mm²)
Shield Type: Unshielded
Jacket Material: PUR
Cable Colour: Black
UL Type: UL AWM 20549
Length Range: 0.3m – 20m

Typical Applications

PROFINET 24V DC power distribution

Industrial Ethernet I/O modules

Automation control systems

Motors and drives

Fieldbus power supply systems

Industrial machinery and equipment
