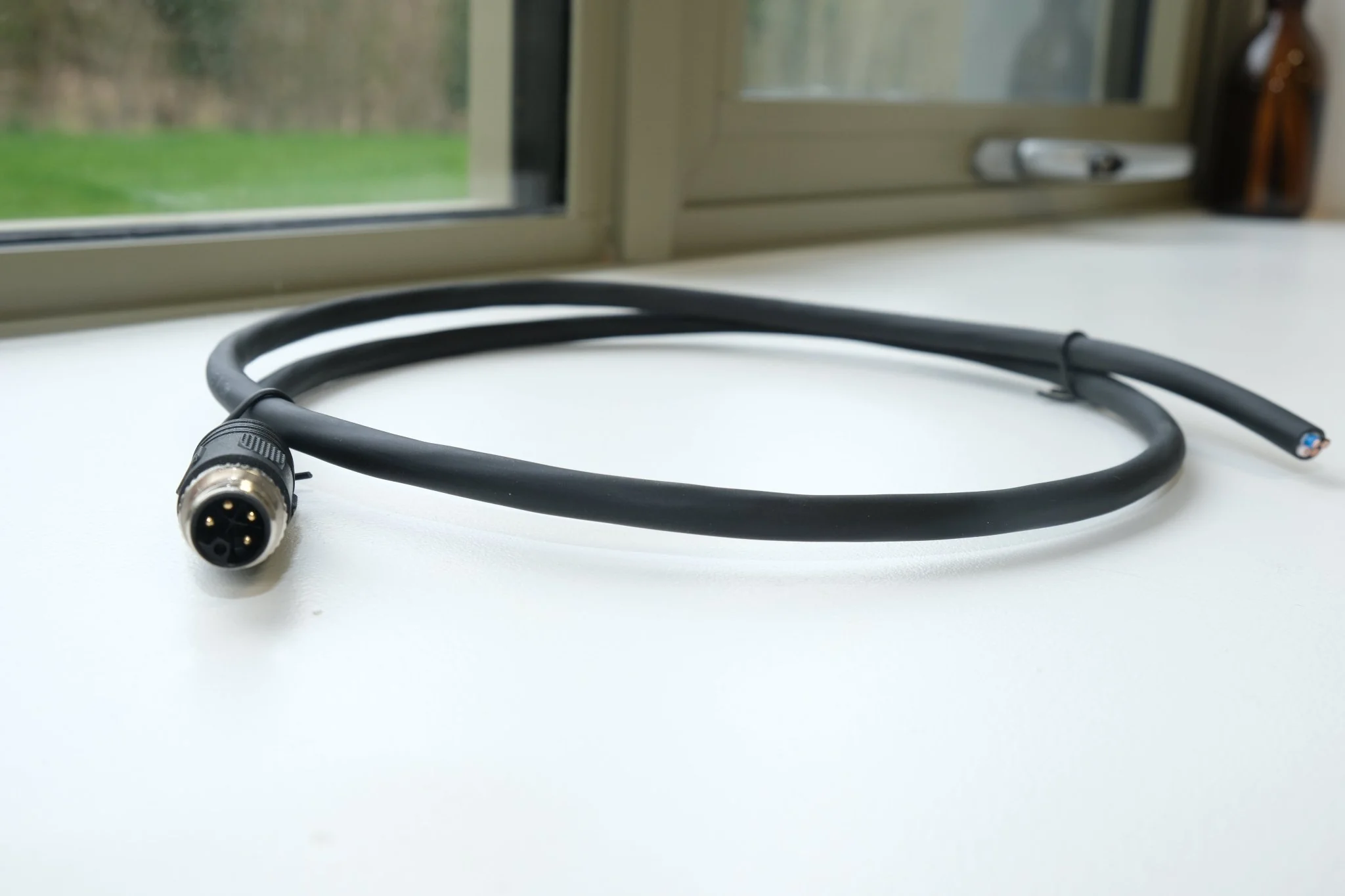

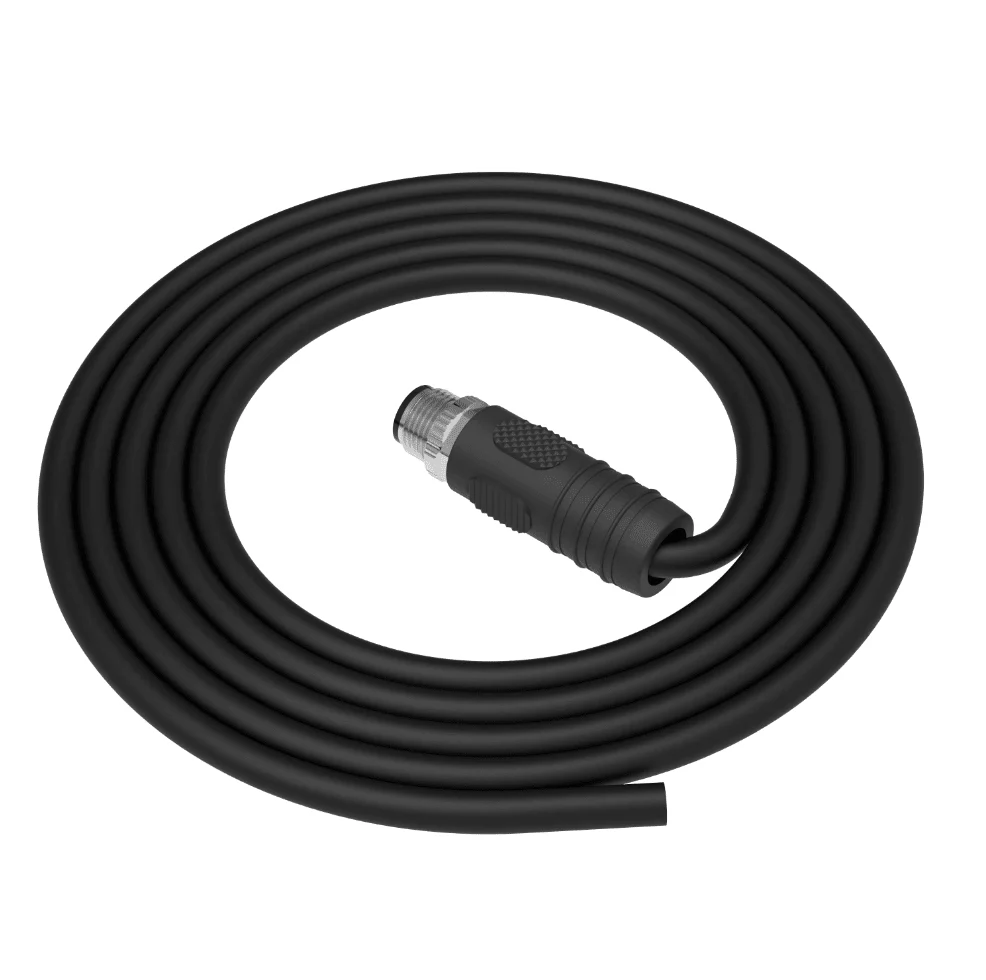

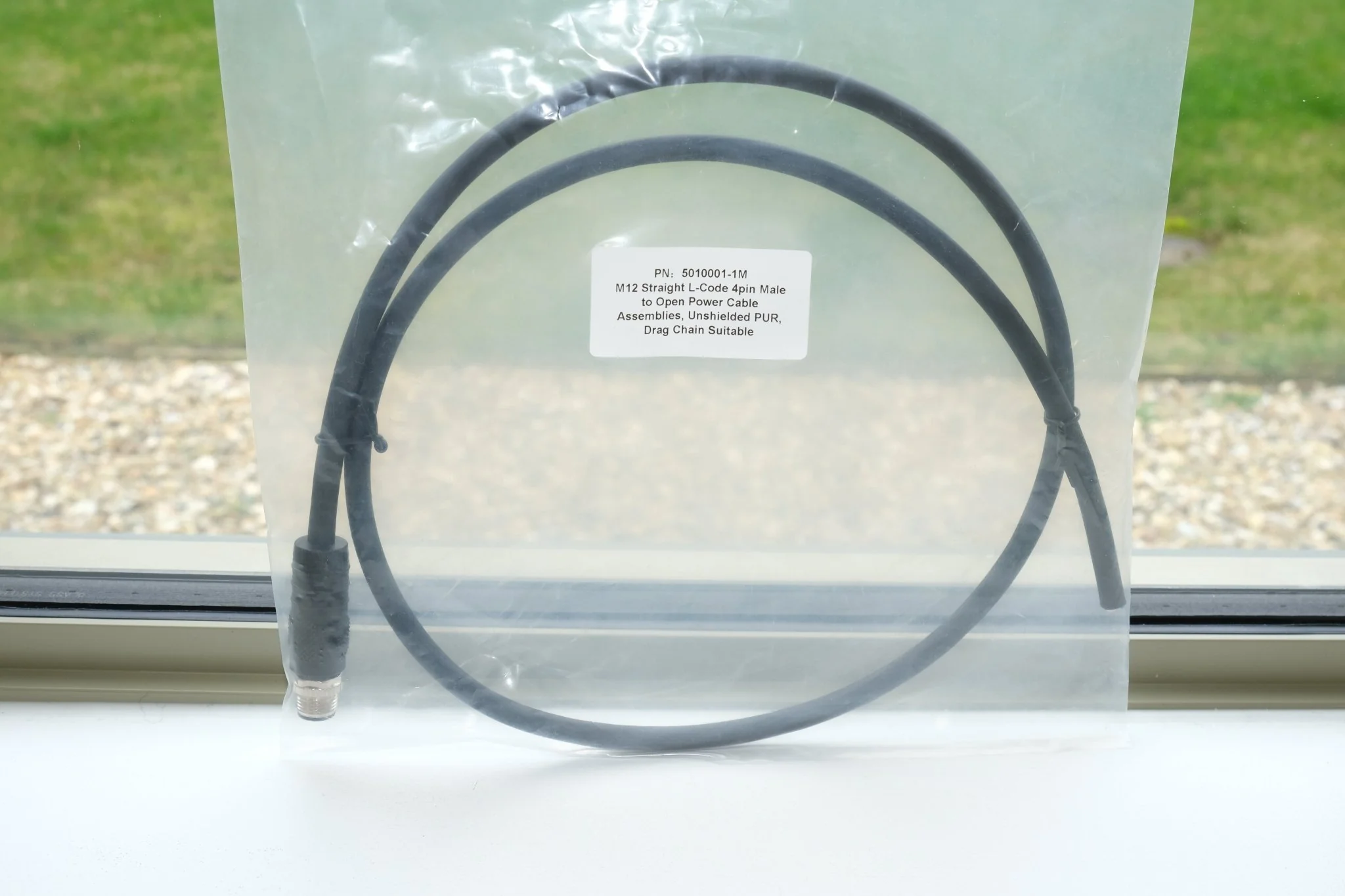

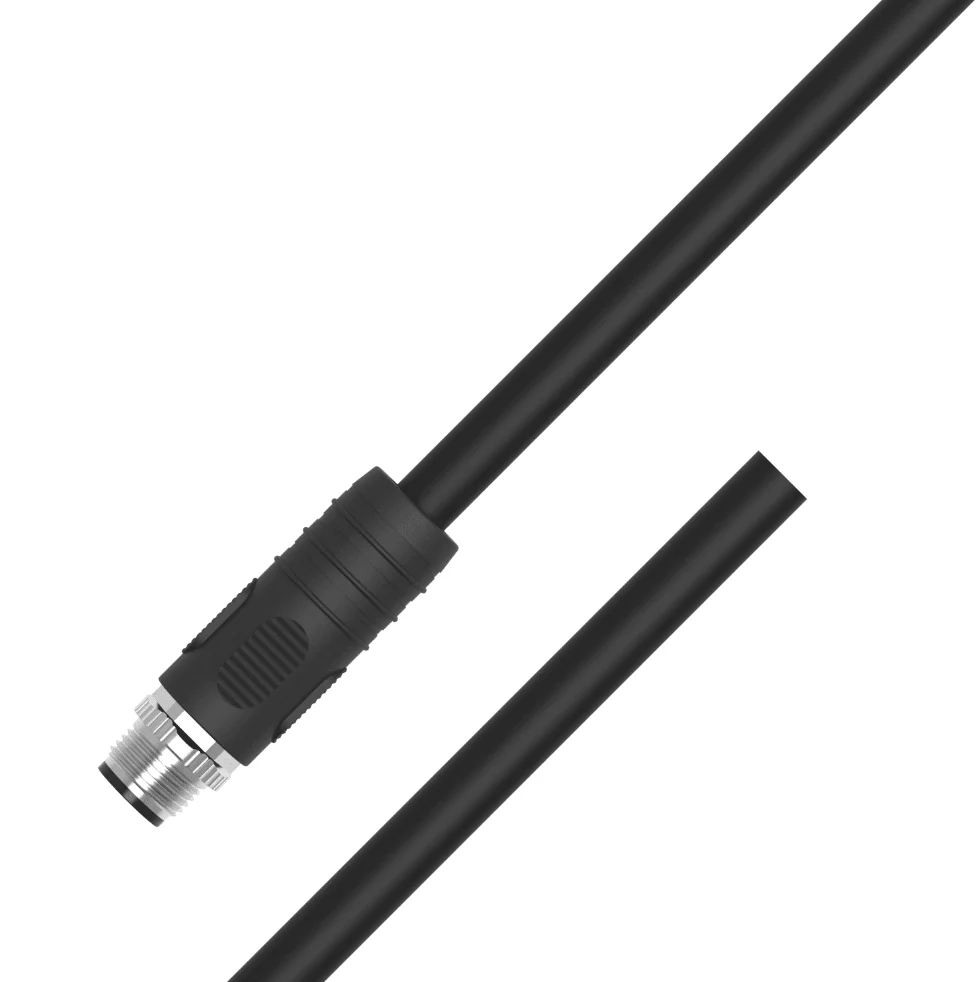

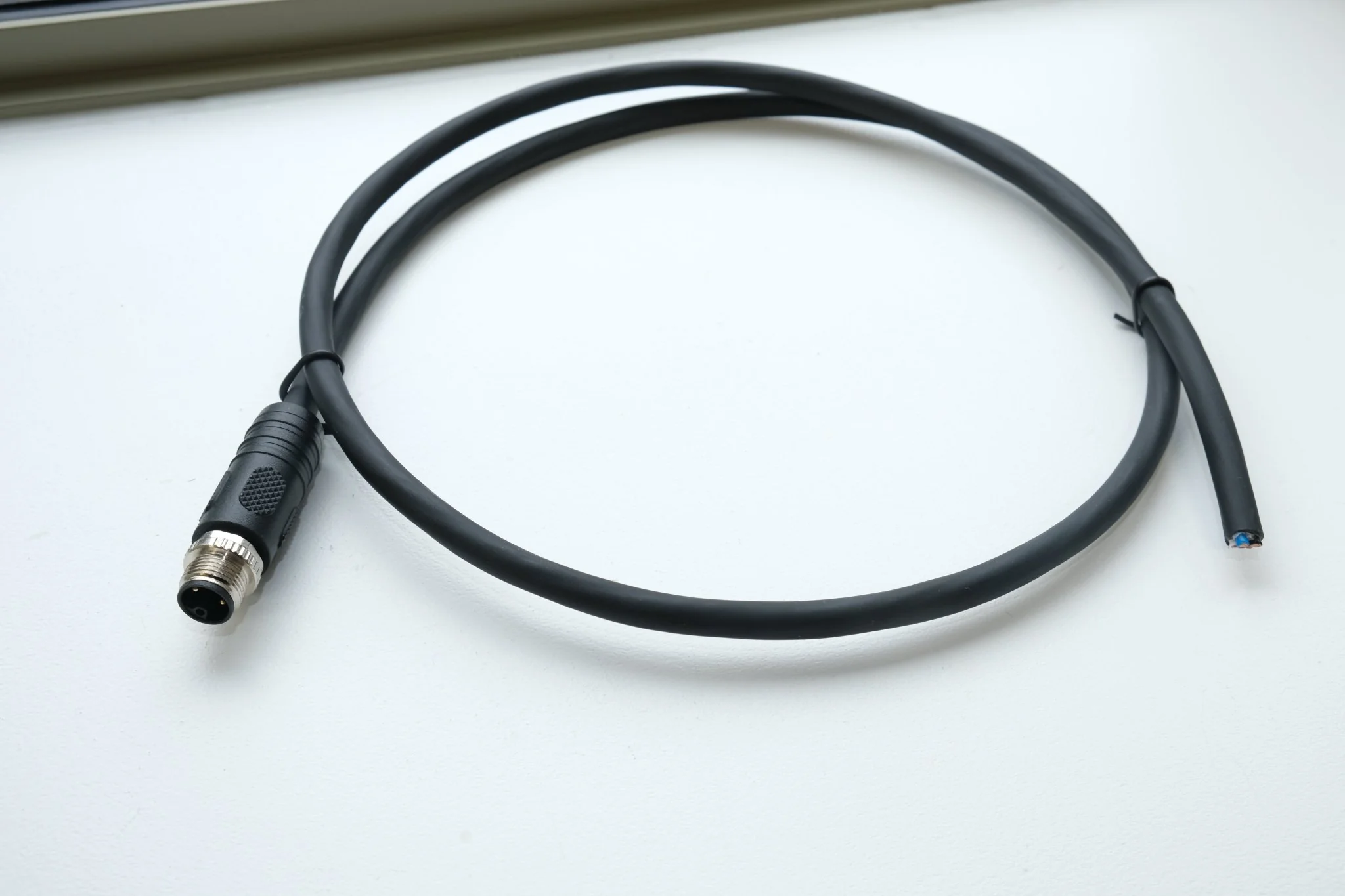

M12 L-Coded Male to Open End 4-Pin 16AWG Power Cable – PUR Drag Chain, IP67

High-Current M12 L-Coded Power Cable for Industrial 24V Systems

This M12 L-Coded male straight to open 4-position cable assembly is designed for high-current DC power distribution in industrial automation and PROFINET power supply applications.

Built to the IEC M12 standard, L-coded connectors are engineered for 24V DC systems requiring higher current capacity than standard A-coded connectors. With 16AWG (1.5mm²) copper conductors and rated up to 63V DC, this cable supports demanding power applications such as fieldbus I/O modules, industrial Ethernet devices, motors, drives and valve systems.

The overmoulded M12 L-coded male connector provides IP67 ingress protection, ensuring reliable performance in harsh industrial environments. The open cable end allows flexible termination into control cabinets, terminal blocks or custom wiring assemblies.

Manufactured with a durable PUR outer jacket, this cable is suitable for drag chain and continuous flex applications, offering resistance to oil, abrasion and mechanical stress.

Key Features

• M12 L-Coded male straight to open end

• 4-pin high-current power connector

• 16AWG (1.5mm²) copper conductors

• Rated up to 63V DC

• Up to 16A per pin (application dependent)

• IP67 rated connector

• PUR jacket for drag chain use

• Compact alternative to 7/8” power connectors

• Designed for 24V industrial power distribution

Connector Specifications

Connector A
Connection: M12 L-Coded
Gender: Male
Poles: 4
Orientation: Straight
Ingress Protection: IP67

Connector B
Connection: Open cable end
Positions: 4

Cable Specifications

Cable Type: L-Coded Power Cable
Conductor Material: Copper
Conductor Structure: AWG16 (1.5mm²)
Shield Type: Unshielded
Jacket Material: PUR
Cable Colour: Black
UL Type: UL AWM 20549
Length Range: 0.3m – 20m

Typical Applications

• PROFINET 24V DC power systems

• Industrial Ethernet I/O modules

• Automation control cabinets

• Motors and drives

• Fieldbus devices

• High-current industrial equipment
